Features
DUAL-TUBE™ BURNERS
Made from high quality stainless steel, Broil King's large diameter, patented tube in tube side ported burners provide two rows of flame for the ultimate in even heat distribution.
FLAV-R-WAVE™ COOKING SYSTEM
The stainless steel Flav-R-Wave™ cooking system provides superior heat distribution, protects the burner and vaporizes drippings for great barbecue flavor.
LINEAR FLOW™ VALVES WITH 180° SENSI-TOUCH™ CONTROL
Linear-Flow™ valves with 180° Sensi-Touch™ control knobs give you infinite heat control, allowing you to set your grill to the perfect temperature for searing, roasting or slow cooking.
SURE-LITE™ IGNITION
The Sure-Lite™ dual-electrode ignition system offers you peace of mind knowing your barbecue grill will start quickly and easily.
Specifications
General
Series Name

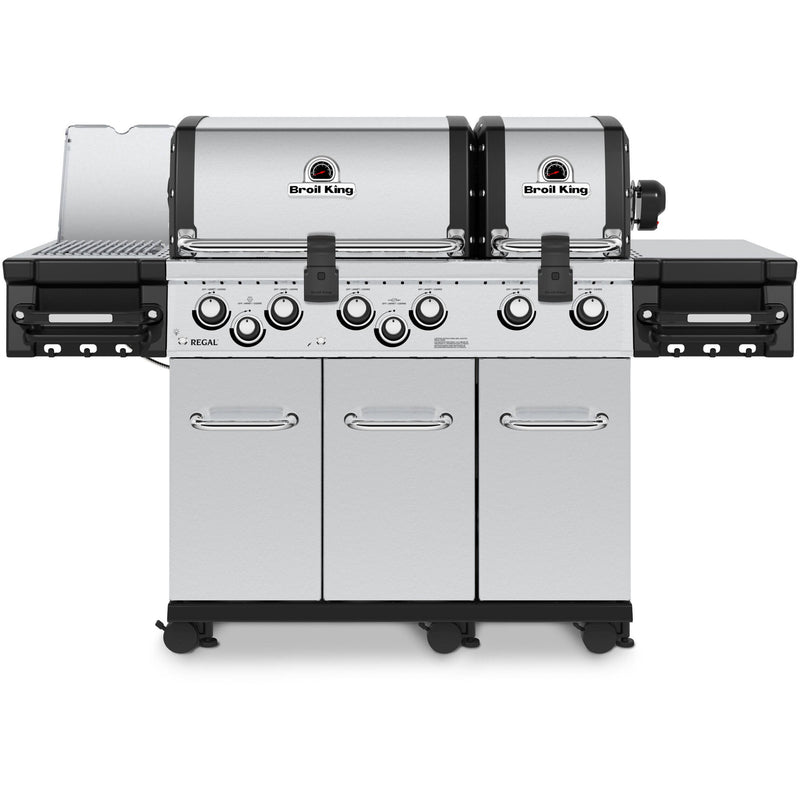

Regal™ S 690 Pro IR
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Type
Cart
Fuel Type
Propane
Cooking Area
Total Cooking Area
1030 in²
Primary Area
750 in²
Secondary Area
280 in²
Cooking System
Burners
6
Main Burner Output
60000 BTU
Rotisserie Output
15000 BTU
Side Burner Output
10000 BTU
Features
Technologies
• Stainless Steel Dual-Tube™ Burner System
• Linear-Flow™ valves with 180° Sensi-Touch™ Control
• Sure-Lite™ Electronic Ignition System
• Two Deluxe Accu-Temp™ Thermometers
• Linear-Flow™ valves with 180° Sensi-Touch™ Control
• Sure-Lite™ Electronic Ignition System
• Two Deluxe Accu-Temp™ Thermometers
Electronic Ignition
Yes
Included Rotisserie
Yes
Side Burner
Yes
Warming Rack
Yes
Additional Information
• 250 sq. in. / 1,613 sq. cm. primary small cook box
• Two completely separate cook boxes
• Large cook box: Solid 9 mm stainless steel rod grids
• Small cook box: Heavy-duty cast iron cooking grids
• Infrared side burner: 8 mm stainless steel rod grids
• Stainless steel hood panel and cook box with cast aluminum end caps
• Stainless steel control panel and side shelves with cast aluminum condiment bins
• Enclosed black cabinet base with stainless steel cabinet doors
• Heavy-duty locking, swivel casters with level setting
• COB handle-mount grill light included
• Propane models have a pull-out tank drawer for easy changes
• Built-in control panel lights
• Two completely separate cook boxes
• Large cook box: Solid 9 mm stainless steel rod grids
• Small cook box: Heavy-duty cast iron cooking grids
• Infrared side burner: 8 mm stainless steel rod grids
• Stainless steel hood panel and cook box with cast aluminum end caps
• Stainless steel control panel and side shelves with cast aluminum condiment bins
• Enclosed black cabinet base with stainless steel cabinet doors
• Heavy-duty locking, swivel casters with level setting
• COB handle-mount grill light included
• Propane models have a pull-out tank drawer for easy changes
• Built-in control panel lights
Accessories
Optional
Broil King® Premium Grill Cover 68490 fits the Regal™ REGAL S 690 PRO IR
Dimensions
Grill Size
70"
Overall Width
70 inch(es) / 177.8 cm
Overall Height
49.2 inch(es) / 124.97 cm
Overall Depth
24.8 inch(es) / 62.99 cm
Weight
270 lb(s) / 122.47 kg
Warranty
Warranty
This Broil King® features a Limited Lifetime Warranty on the entire cookbox, 15 years on Dual-Tube™ burner system, and 15 years top to bottom, on all remaining parts and paint
