Features
ELEGANT DESIGN, EXCEPTIONAL BUILD
As beautiful as it is powerful, the Bar 90A is a meticulously crafted system that integrates seamlessly into your home. The slim sound bar, wrapped in a high-rigidity metal enclosure and supported by vibration-dampening feet, delivers both elegance and acoustic precision. The wireless subwoofer adds deep bass with flexible placement anywhere in your room.
SONIC CLARITY, SLIM DESIGN
Our challenge: to deliver extraordinary sound from a slim bar. Our secret: newly developed, custom eye-shaped speaker drivers. By optimizing the shape, structure and magnetic circuitry of the primary front drivers, we greatly improved cone strength and high-frequency clarity. The result — clear, lifelike sound without acoustic interference, from a sleek form factor that perfectly complements your TV and décor.
SOUND BEAM TECHNOLOGY, REDEFINED
Over twenty years ago, we re-invented home theater with the YSP-1 sound bar and we’ve been refining its unique sound beam technology ever since. In this latest model, we employed a Yamaha YDA-141 high-performance amplifier with twelve (six per side) ultra-precise DSP-controlled beam speakers to produce phenomenal height channel effects. With realistic Dolby Atmos® playback, the Bar 90A delivers an amazing sound field that surpasses conventional sound bars.
FEEL THE DEPTH, HEAR THE POWER

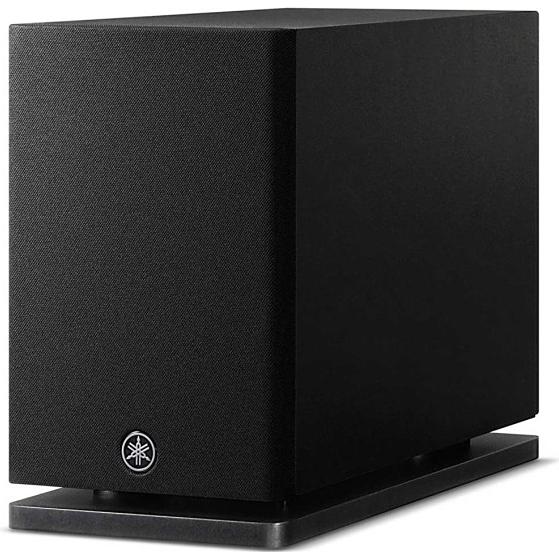

The subwoofer of this system employs Symmetrical Flare Port® technology, newly developed through meticulous Particle Image Velocimetry (PIV) measurements—delivering powerful, deeply resonant bass. The symmetrical horizontal/vertical port structure ensures extremely smooth release of the strong air flow generated during bass reproduction. As a result, port noise has been reduced by 20 dB compared to conventional models, enabling pure bass reproduction that is both powerful and deep.
INTELLIGENT OPTIMIZATION
SURROUND:AI™ analyzes content in real time to optimize every element of every scene — dialogue, music, ambient sounds and effects. It’s like having a Yamaha sound engineer fine-tuning the sound just for you. This exclusive Yamaha technology is powered by a Qualcomm® QCS407 64-bit SoC, the same ultra-powerful processor used in our flagship AVENTAGE AV receivers.
STREAMING & CONTROL MADE EASY
The Bar 90A supports MusicCast, our advanced wireless audio platform that puts powerful control in your hands through the intuitive MusicCast app. Seamlessly stream music from popular services like Spotify, Apple Music, Amazon Music, TIDAL, Qobuz, and more, over Wi-Fi, Bluetooth, or AirPlay. The app lets you browse, play, and control audio across MusicCast-compatible devices with ease.
AURO-3D® IMMERSIVE AUDIO
As the world's first AURO-3D sound bar, the Bar 90A takes full advantage of the height-channel sound beams to create a sense of realism as if you were experiencing a live performance in person. In addition, with great effect thanks to the AURO-3D Auro-Matic function, stereo content is up-mixed into an exceptional three-dimensional sound field.
CLEAR VOICE & BASS EXTENSION
The unique Clear Voice feature makes it easier to hear and understand dialogue and vocals. Bass Extension adds body and depth to the bass while keeping the mids and highs clean, making movies even more impactful.
EASY CONNECTIVITY
Compatible with eARC and CEC, the system can be connected to the TV with a single HDMI cable, while power on/off and volume can be controlled with your TV remote.
Specifications
System
Color
Black
Number of Channels
5.1.2
Pass-Through
4K
Surround Sound Formats
• Surround Decoder: Dolby Atmos, DTS:X, AURO-3D
• Surround Mode: SURROUND:AI, 3D Music, Stereo, Straight, All
• Surround Mode: SURROUND:AI, 3D Music, Stereo, Straight, All
Wi-Fi
Yes
Bluetooth
Yes
Musiccast Compatible
Yes
Additional Information
• Premium sound performance and build quality
• Newly developed, eye-shaped front speakers deliver astounding sonic fidelity
• Yamaha sound beam height speakers for superior Dolby Atmos immersion
• Exclusive Surround:AI® intelligently optimizes spatial sound in real time
• Wireless subwoofer with Symmetrical Flare Port™ produces exceptionally clear, dynamic bass
• Optional portable wireless surround speakers with one-touch Solo mode (sold separately)
• Wi-Fi, Bluetooth, Apple AirPlay 2, Spotify Connect, TIDAL Connect, Qobuz and more
• MusicCast streaming, control and multi-room audio
• The world's first sound bar with AURO-3D®
• Power Consumption: 0.5W (HDMI control off, network standby off), 2.0W (HDMI control off, network standby on), Subwoofer: 2.0W
• Newly developed, eye-shaped front speakers deliver astounding sonic fidelity
• Yamaha sound beam height speakers for superior Dolby Atmos immersion
• Exclusive Surround:AI® intelligently optimizes spatial sound in real time
• Wireless subwoofer with Symmetrical Flare Port™ produces exceptionally clear, dynamic bass
• Optional portable wireless surround speakers with one-touch Solo mode (sold separately)
• Wi-Fi, Bluetooth, Apple AirPlay 2, Spotify Connect, TIDAL Connect, Qobuz and more
• MusicCast streaming, control and multi-room audio
• The world's first sound bar with AURO-3D®
• Power Consumption: 0.5W (HDMI control off, network standby off), 2.0W (HDMI control off, network standby on), Subwoofer: 2.0W
Sound bar
High Frequency Drivers
• Front L/R: 1" dome type tweeter × 2
• Center: 1" dome type tweeter × 2
• Center: 1" dome type tweeter × 2
Mid/Low Frequency Drivers
• Front L/R: 4-3/8" × 2-1/8" cone type full range × 2
• Center: 4-3/8" × 2-1/8" cone type full range × 1
• Height Beam L/R: 1-1/8" cone type × 12
• Center: 4-3/8" × 2-1/8" cone type full range × 1
• Height Beam L/R: 1-1/8" cone type × 12
Low Frequency Drivers
Subwoofer: 6-3/4" cone type

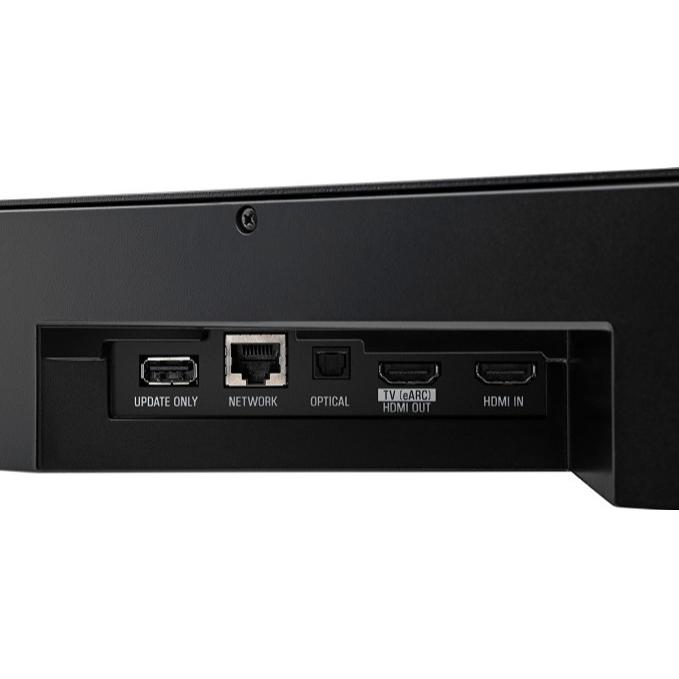

Inputs/Outputs
Information
• HDMI: 1 input / 1 output (eARC)
• Digital optical (optical input supported)
• Digital optical (optical input supported)
Sound Bar Dimensions
Width
46.5 inch(es) / 118.11 cm
Height
3.37 inch(es) / 8.57 cm
Depth
5.63 inch(es) / 14.29 cm
Weight
24.29 lb(s) / 11.02 kg
Subwoofer Dimensions
Width
9.5 inch(es) / 24.13 cm
Height
14.87 inch(es) / 37.78 cm
Depth
16.25 inch(es) / 41.28 cm
Weight
28 lb(s) / 12.7 kg
