Features
Perfectly unified tone
As a world-renowned music brand, Yamaha is relentlessly committed to accurately reproducing the sounds of instruments. In order to make this quest a reality, we created flagship speakers under the design concept of having consistent tone color throughout the entire frequency spectrum and applied unique technology to achieve it. For each and every one of its speaker units, the speaker employs the newly developed Harmonious Diaphragm™—made from a blend of ZYLON®, which has excellent sound velocity and optimal internal dissipation — and spruce, which is used in the soundboard of Yamaha grand pianos.
Total Music Reproduction
Our patented Resonance Suppression chambers are mounted on the back of the tweeter in order to faithfully express even the finest nuances of musical instruments and voices. Two specially shaped tubes cancel unwanted resonance generated behind the diaphragm, revitalizing and maintaining the original sound.
Faithful Musical Presence
Conventional speakers use a large amount of sound-absorbing material to eliminate standing waves inside the cabinet. However, this also removes much of the music's character. In the speaker, we’ve employed our patented Absorber tube to eliminate standing waves, while minimizing the amount of absorbing material, so that the original realism of music is reproduced with full energy and dynamism.
Highly Musical Vibration Control
The principles for creating superb sound — understanding enclosure acoustics and pinpointing where to suppress vibrations — are virtually identical, whether crafting musical instruments or speakers. The speaker cabinet construction incorporates state-of-the-art design technology while making full use of laser vibrometers, a tool essential in musical instrument research and development, as well as sophisticated Finite Element Method (FEM) analysis. The cross piece of the cabinet has also been reinforced. Experience a rich spatial sound that fully immerses you, making you feel as though you're right in the center of the performance.
NS-600A - Other Features
• SEAMLESS SONIC PERFORMANCE: NS-600A flagship speaker uses highest-quality parts for crossover circuit, including MCap® SUPREME Classic audio capacitor by Mundorf (Germany) and a large woofer coil

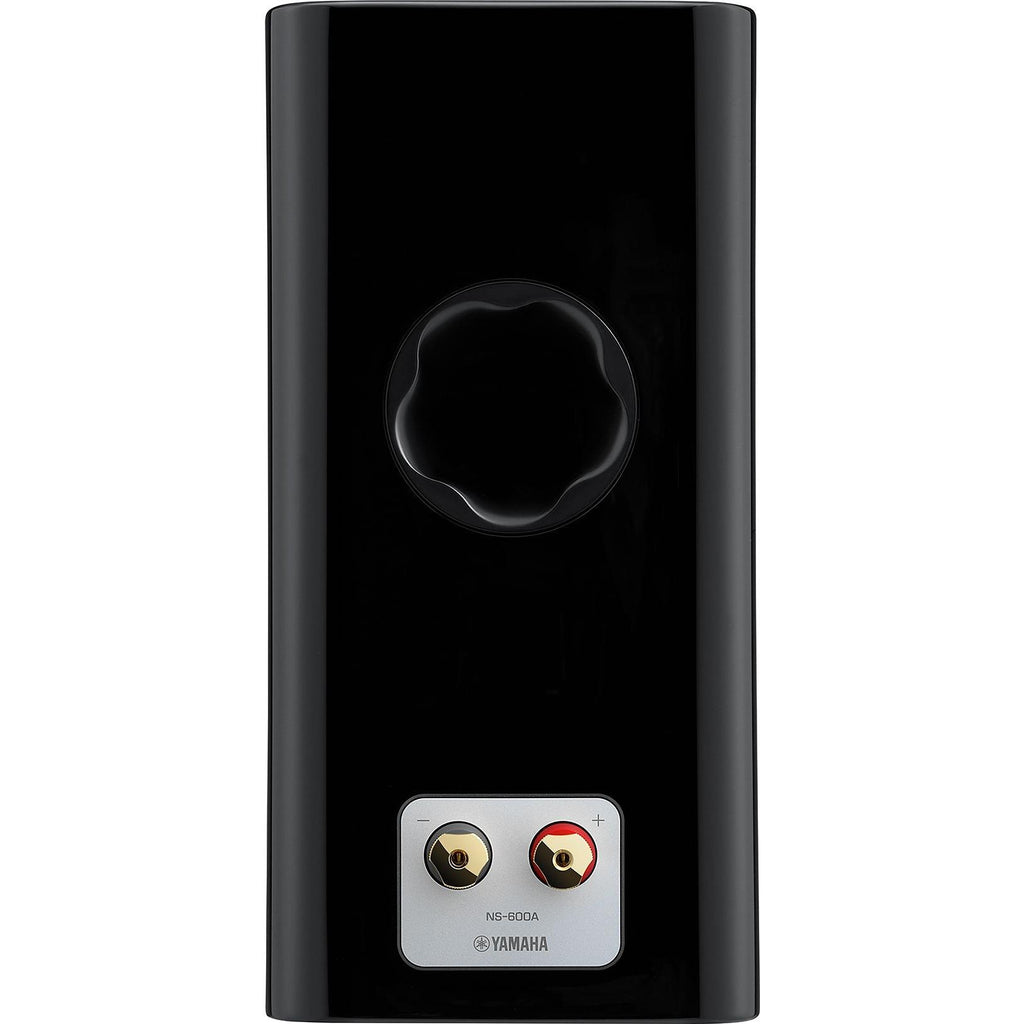

• TWISTED FLARE PORT: Original Twisted Flare Port reduces air flow noise around the port for clear, tight, and accurate bass reproduction
• HIGH-QUALITY FEEL: Speaker terminals designed for comfort and ease of tightening, offering a luxurious tactile experience
• TWISTED FLARE PORT: Original Twisted Flare Port reduces air flow noise around the port for clear, tight, and accurate bass reproduction
• HIGH-QUALITY FEEL: Speaker terminals designed for comfort and ease of tightening, offering a luxurious tactile experience
Additional Features
True Sound - True Balance
• TRUE SOUND: Yamaha manages every facet of sound from creation to playback, delivering an immersive experience that brings you closer to the artist
• TONAL BALANCE: Reproduces vocals and instruments at the correct pitch, enriching harmonies and revealing details you may not have heard before
• TONAL BALANCE: Reproduces vocals and instruments at the correct pitch, enriching harmonies and revealing details you may not have heard before
Specifications
General
Series
600 Series
Speaker Type
Indoor
Color
Black
Manufacturer Color
Piano Black
Frequency Response
52 Hz - 40 kHz
Sensitivity
86 dB
Amplifier Recommended Range
40 W - 200 W
Impedance
6 ohms
Number of Drivers
2
Power Handling
40 W
Features
Technologies
• Harmonious Diaphragm™
• Zylon®
• Yamaha-patented R.S. (Resonance Suppression)
• Zylon®
• Yamaha-patented R.S. (Resonance Suppression)
Additional Information
• 2-way bookshelf speaker with 5 1/8" woofer
• Newly developed Harmonious Diaphragm™ made from a blend of materials including Zylon® and spruce for true tonal balance
• Ideal cabinet construction using vibration analysis technology derived from musical instrument craftsmanship
• Yamaha-patented Acoustic Absorber optimized for the NS-600A
• Yamaha-patented R.S. (Resonance Suppression) Chamber reduces unwanted resonance
• Authentic piano finish adds a luxurious look and feel
• High-quality crossover components including audio capacitors by Mundorf (Germany)
• Solid brass speaker terminals for secure connection and premium feel
• Newly developed Harmonious Diaphragm™ made from a blend of materials including Zylon® and spruce for true tonal balance
• Ideal cabinet construction using vibration analysis technology derived from musical instrument craftsmanship
• Yamaha-patented Acoustic Absorber optimized for the NS-600A
• Yamaha-patented R.S. (Resonance Suppression) Chamber reduces unwanted resonance
• Authentic piano finish adds a luxurious look and feel
• High-quality crossover components including audio capacitors by Mundorf (Germany)
• Solid brass speaker terminals for secure connection and premium feel
Speakers
High-Frequency Drivers
1 inch dome tweeter
Bass Drivers
5 inch cone woofer
Crossover Information
2.6 kHz
Subwoofer
Stereo
Yes
Ported
Yes
Dimensions
Width
8.15 inch(es) / 20.7 cm
Height
15.08 inch(es) / 38.3 cm
Depth
12.95 inch(es) / 32.9 cm
Weight
9.9 kg (each)
Warranty
Warranty
Limited 1 Year
UPC
UPC#
4957812670904
