Yamaha CD Players Single CD-S2100 (S)

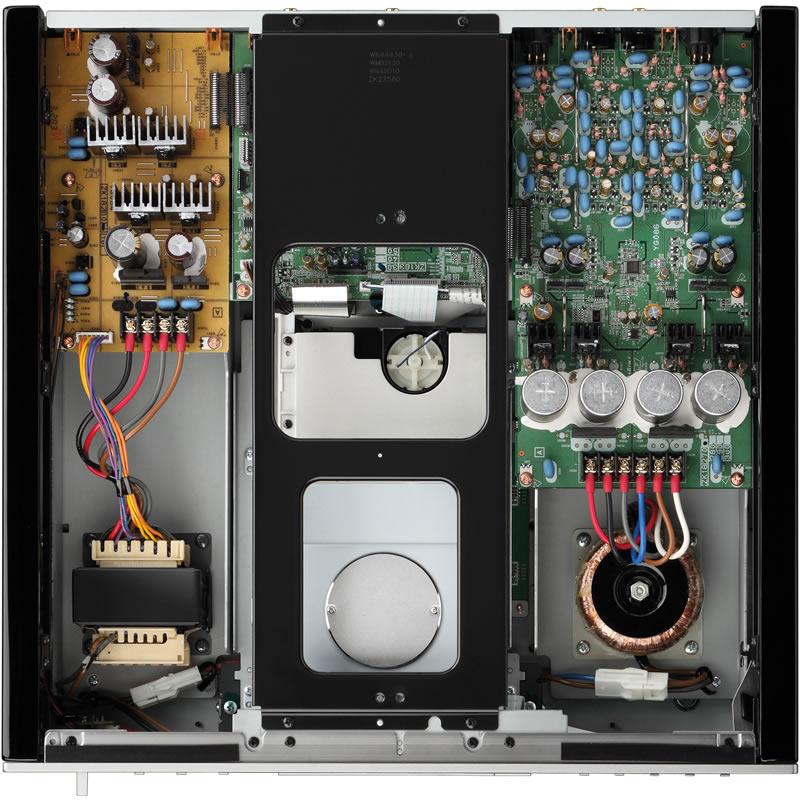

This CD Player has completely symmetrical construction: the rotating loader mechanism is in the center, the digital power supply and circuit board are on the left side and the analog power supply and circuit board are on the right. Completely isolating the digital unit and the analog unit eliminates detrimental impacts of interference between the circuits while achieving ideal weight balance. The center frame that extends from the front to the back of the body, along with a front panel made of 1/4" thick aluminum, increases rigidity of the entire chassis and ensures stable disc play.

To thoroughly eliminate audio signal loss, this CD Player adopts an innovative circuit configuration for the analogue circuit. The signal from the D/A converter is conventionally output as an analogue signal through an I/V conversion circuit configured in multiple stages. However, in this CD Player, the signal is output by a single-stage configuration based on a discrete design of the I/V conversion circuit. This single-stage configuration with high slew-rate sharply lowers audio signal loss compared to a multi-stage configuration circuit, and lowers NFB (Negative Feedback), eliminating any sonic suppression, resulting in a natural, spacious sound.

This CD Player is equipped with the same drive mechanism as the Yamaha flagship model CD-S3000 in order to perform high precision reading of the vast quantity of audio data recorded on a disc. The loader mechanism is connected firmly to the chassis by installing heavy, specially curved 1/16" thick iron reinforcing anchors in front of and behind the loader mechanism, eliminating the transmission of vibration caused by disc rotation to the circuit board. By eliminating even the slightest tilting of the mechanism, this achieves stabilized rotation and ultra-precise reading. Reducing the load of the servo that drives the pickup and lowering the impact of change of servo amperage on the signal achieves clean signal readout with little impact of noise — drawing out every little nuance the artist has recorded.

The D/A converter for this product is the ES9018 from ESS Technology, Inc. We selected this after careful examination of all points—not only its high-precision processing of 32-bit audio, but also the ability to handle large amounts of audio data, strength in the low register, and high-quality definition in the high register. Since it is constructed with the master clock inside the D/A converter, it is also features an original Jitter Eliminator function, permitting D/A conversion with extremely low impact of clock jitter. Moreover, an 8-channel D/A converter is housed inside the chip, and applies double differential operation using 4-channel D/A converters on the right and left sides respectively. It delivers exceptional high performance and high-quality signal output with superior signal to- noise ratio, since it employs an analogue signal processing circuit with balanced configuration.

The insulators are crucial parts that block outside vibrations. They adopt Yamaha’s original metal legs in order to maximise vibration control performance. The user can select point installation by applying the supplied spikes or plane insulation with the supplied pads, and use these combined with an interlocking rack if desired.
