Features
C-5000 Perfectly Balanced
Together with the GT-5000 turntable and M-5000 power amplifier, Yamaha delivers an end-to-end balanced signal chain across its flagship models for premier performance.
C-5000 Floating and Balanced Pre-amplifier
• The C-5000 features fully balanced and discrete circuit transmission across all stages of the signal path at Tone Defeat.
• The patented floating design is adopted across the phono EQ, input amp and line amp stages - removing the influence of ground noise from the signal.
• The patented floating design is adopted across the phono EQ, input amp and line amp stages - removing the influence of ground noise from the signal.

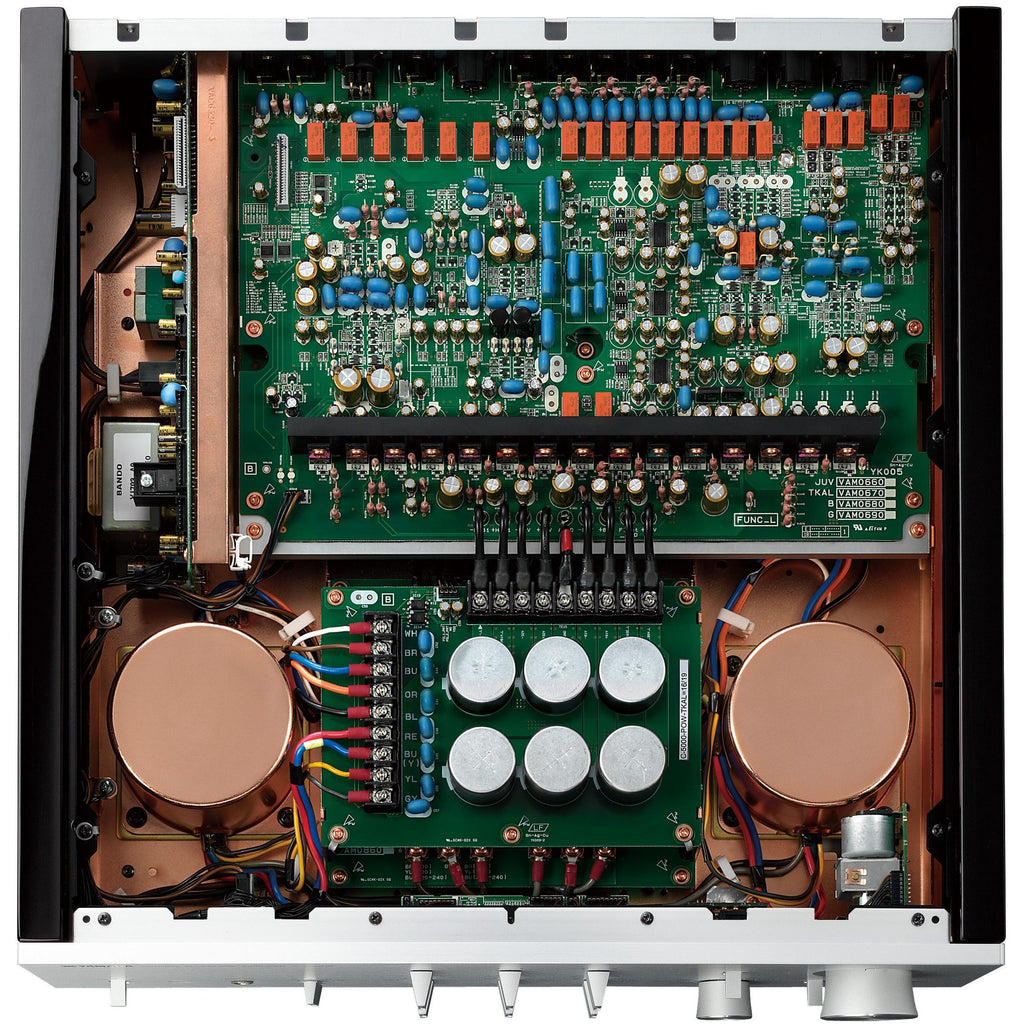

Symmetrical, Folding-book Circuit Design
• The folding-book design for the pre-amplifier PCB mirrors the left and right signal paths for precise matching and layout.
• With each channel physically identical, the C-5000 is capable of the most accurate reproduction of audio which is both wide and deep.
• Further, the ground loop is minimised when other components are connected
• With each channel physically identical, the C-5000 is capable of the most accurate reproduction of audio which is both wide and deep.
• Further, the ground loop is minimised when other components are connected

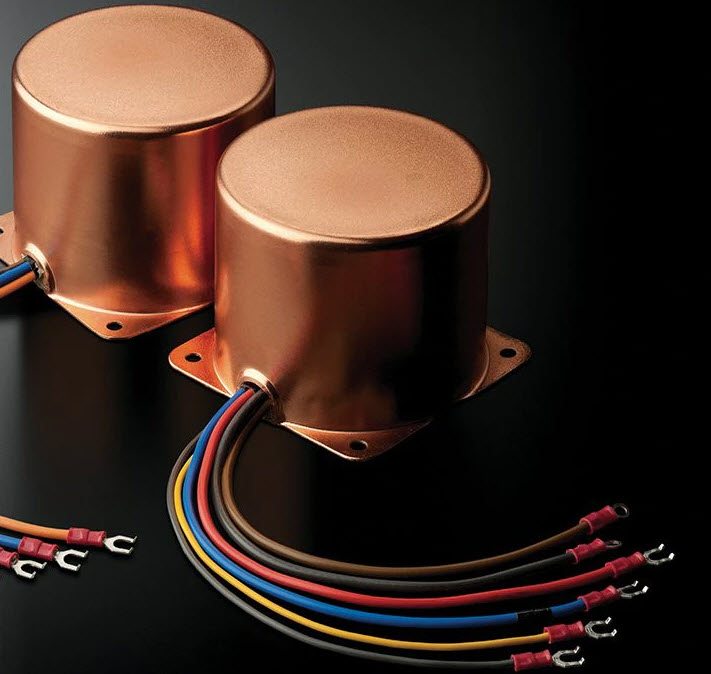

Dual Toroidal Transformers
• Adopting independent dual toroidal transformers for the left and right channels delivers optimal separation and therefore producing a sound stage which is faithful to the original source.
• Low magnetic leakage lowers adverse impact on the audio signal. Following detailed research based on trial listening, the power transformer was enclosed in a copper-plated case to suppress magnetic flux and vibration. This also assists in minimising the influence of flux in the phono circuit.
• This realises a gentle, calm and even spacious sound due to enhanced reproduction of detailed signals
• Low magnetic leakage lowers adverse impact on the audio signal. Following detailed research based on trial listening, the power transformer was enclosed in a copper-plated case to suppress magnetic flux and vibration. This also assists in minimising the influence of flux in the phono circuit.
• This realises a gentle, calm and even spacious sound due to enhanced reproduction of detailed signals
C-5000 Low-impedance Design
• By copper-plating the chassis to minimise the influence of voltage on the circuit, the C-5000 is capable of expressing the subtlest nuances as well as powerful bass.
• Additionally, thick screw-type wires are utilised to reduce the impedance of the power supply and maximises the transmission of musical information.
• Additionally, thick screw-type wires are utilised to reduce the impedance of the power supply and maximises the transmission of musical information.

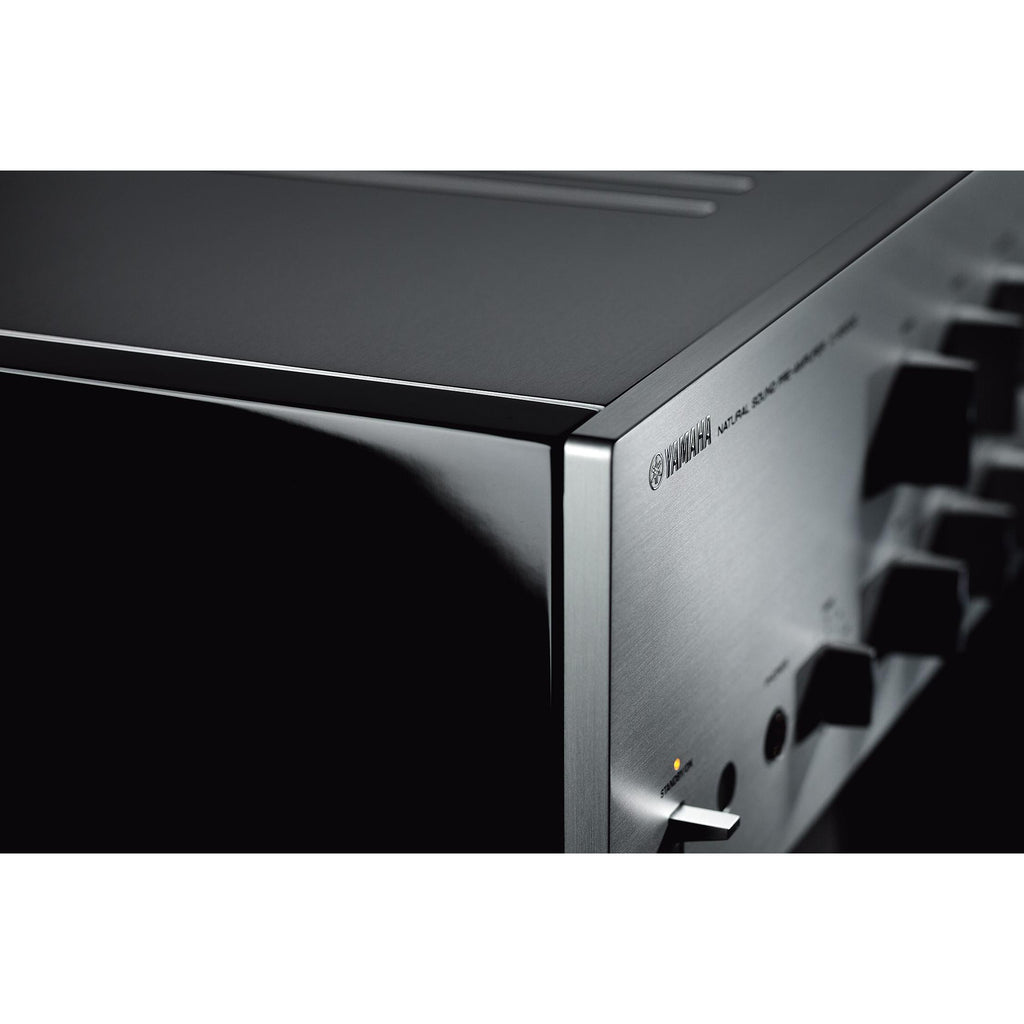

C-5000 Original Design
• The C-5000 was designed from the ground up to deliver the ultimate in listening experiences - down to its aesthetic and even its touch.
• The knobs and lever switches feature original designs to communicate both innovation and craftsmanship.

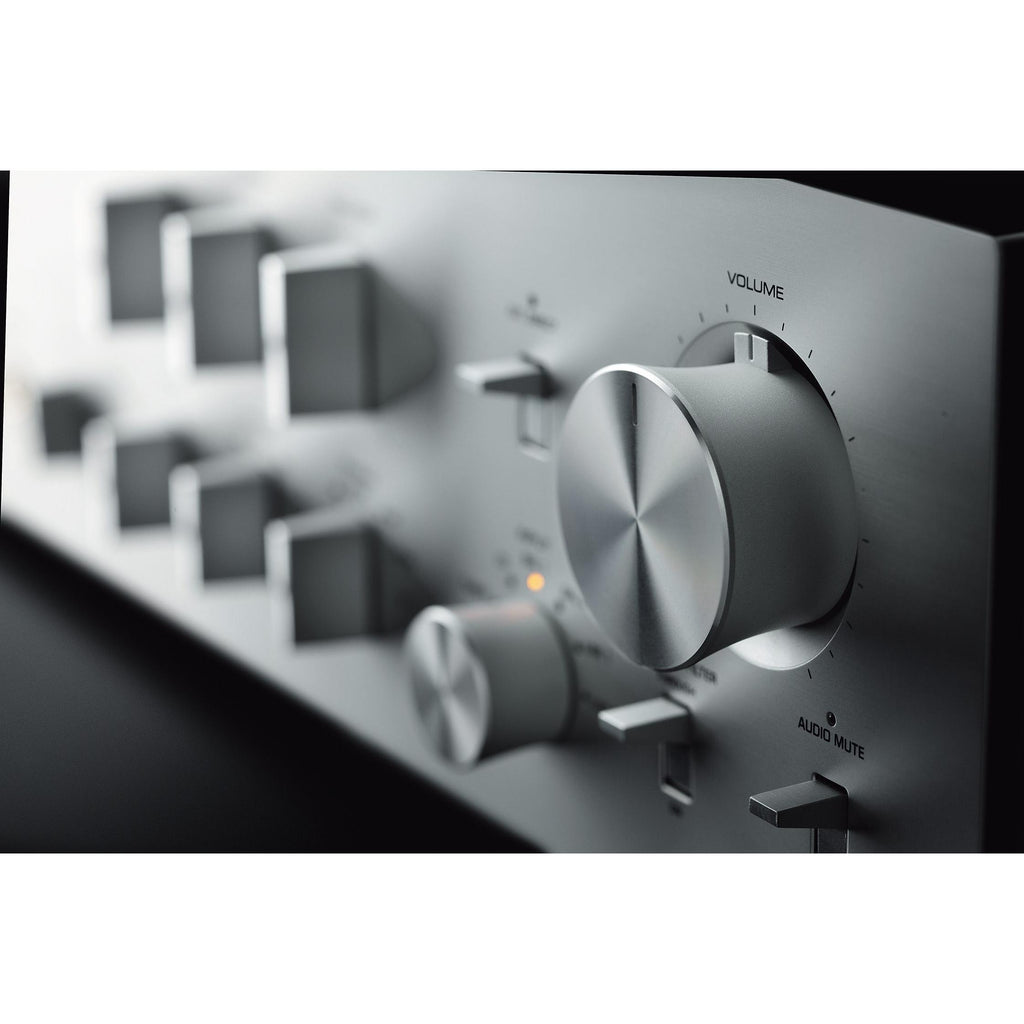

• The volume knob is both rigid and precise - employing ball-bearings and precision-cut aluminium to achieve its touch while the lever switches have also been refined for enhanced operation.
• The knobs and lever switches feature original designs to communicate both innovation and craftsmanship.
• The volume knob is both rigid and precise - employing ball-bearings and precision-cut aluminium to achieve its touch while the lever switches have also been refined for enhanced operation.
C-5000 Custom-designed Feet
• Every aspect of the C-5000 was carefully considered when designing this flagship model. Its construction exudes master craftsmanship and reflects an obsession with achieving the highest levels of performance.
• The feet are no exception. Like the M-5000, the custom heavy-duty brass feet function either as fully supported spikes or with a scratch guard base for use on delicate surfaces.
• The feet are no exception. Like the M-5000, the custom heavy-duty brass feet function either as fully supported spikes or with a scratch guard base for use on delicate surfaces.
Specifications
General
Sound Channels
2
Power Consumption (Max)
60 W
Total Harmonic Distortion
0.01 %
Frequency Range (Hz)
10 - 100000 Hz
Technologies
Dual Toroidal Transformers
Additional Information
• Perfectly balanced signal transmission
• Floating balanced pre-amp
• Symmetrical, folding-book circuit design
• Low-impedance design
• Rigid and precise design
• Floating balanced pre-amp
• Symmetrical, folding-book circuit design
• Low-impedance design
• Rigid and precise design

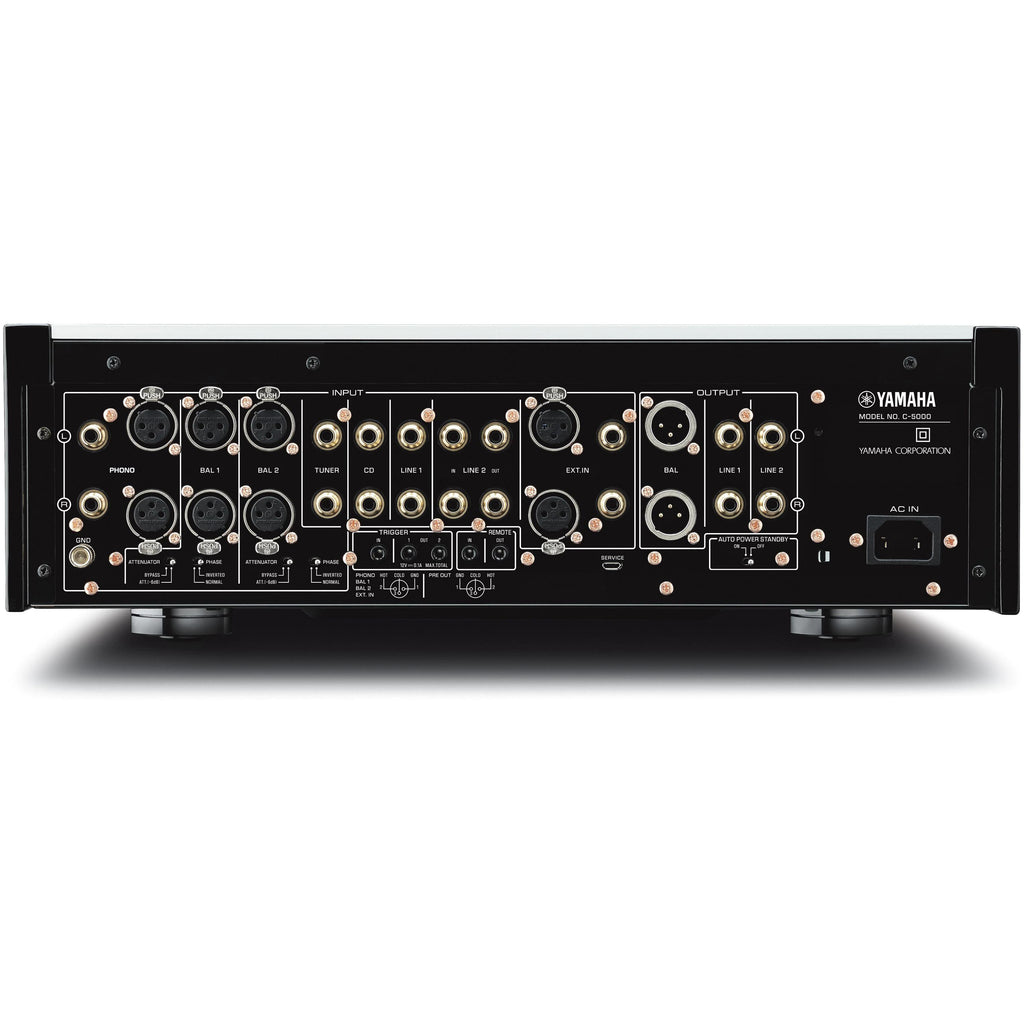

Inputs/Outputs
Information
• Rear: Remote control input
• Rear: Remote control output
• Front: Headphones (phone stereo 6.3 mm)
• Rear: Phono input (XLR x 2)
• Rear: Phono input (RCA x 2)
• Rear: 3 x balanced audio input (XLR x 2)
• Rear: 5 x audio line-in (RCA x 2)
• Rear: Balanced audio output (XLR x 2)
• Rear: 2 x audio line-out (RCA x 2)
• Rear: 3 x trigger
• Rear: Remote control output
• Front: Headphones (phone stereo 6.3 mm)
• Rear: Phono input (XLR x 2)
• Rear: Phono input (RCA x 2)
• Rear: 3 x balanced audio input (XLR x 2)
• Rear: 5 x audio line-in (RCA x 2)
• Rear: Balanced audio output (XLR x 2)
• Rear: 2 x audio line-out (RCA x 2)
• Rear: 3 x trigger
Dimensions
Width
17.13 inch(es) / 43.5 cm
Height
5.59 inch(es) / 14.2 cm
Depth
17.76 inch(es) / 45.1 cm
Weight
42.11 lb(s) / 19.1 kg
