Specifications
General
Series
Professional
Speaker Type
Indoor
Color
Black
Manufacturer Color
Black
Frequency Response
64Hz-20kHz +/- 4dB, 54Hz -10dB
Sensitivity
88dB
Impedance
8 ohms
Power Handling
50 W
Inputs/Outputs
Information
Input Connectors: 4 pin euro block
Features
Technologies
SkyHook® Pro Technology
Additional Information
• Power Handling: 50 watts (14.6V) 58Hz-10kHz (200 watts peak)
• Calc. Max. Cont. Output: 102dB
• Coverage: 90° +/- 40° 1kHz-20kHz
• Directivity Index: 7dB +/- 3dB 800Hz-20kHz
• Nominal Impedance: 8 ohms 4.3 ohms at 185Hz minimum
• Enclosure Material: All Weather Abs Plastic, Paintable; Metal Can
• Enclosure Tuning: Vented via 3 folded Tractrix ports
• Transformer Taps: 70V: 15W, 7.5W, 3.8W, 1.9W, 100V: 15W, 7.5W, 3.8W, Bypass position: 8 ohms nominal
• UL2043, 1480A
• Cutout: 9.125"
• Mounting Depth: 7.313"
• Calc. Max. Cont. Output: 102dB
• Coverage: 90° +/- 40° 1kHz-20kHz
• Directivity Index: 7dB +/- 3dB 800Hz-20kHz
• Nominal Impedance: 8 ohms 4.3 ohms at 185Hz minimum
• Enclosure Material: All Weather Abs Plastic, Paintable; Metal Can
• Enclosure Tuning: Vented via 3 folded Tractrix ports
• Transformer Taps: 70V: 15W, 7.5W, 3.8W, 1.9W, 100V: 15W, 7.5W, 3.8W, Bypass position: 8 ohms nominal
• UL2043, 1480A
• Cutout: 9.125"
• Mounting Depth: 7.313"

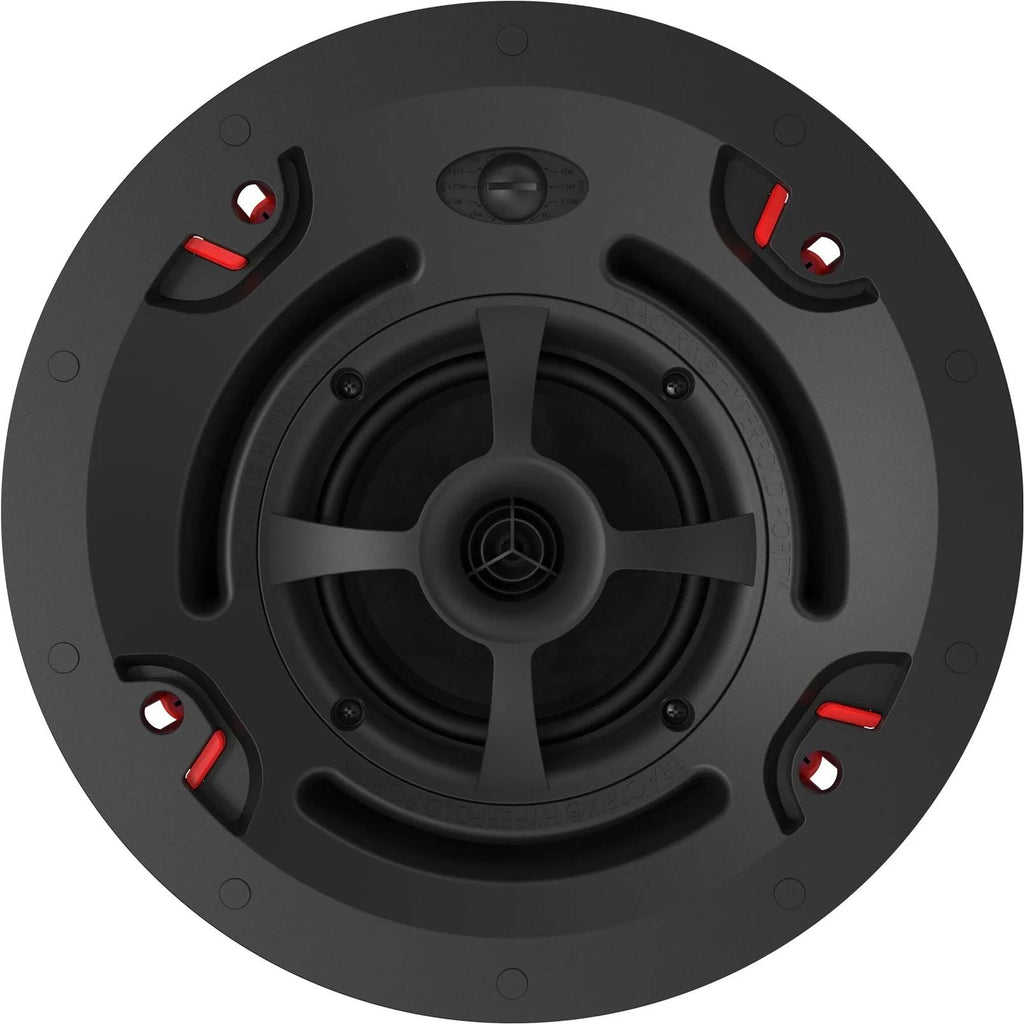

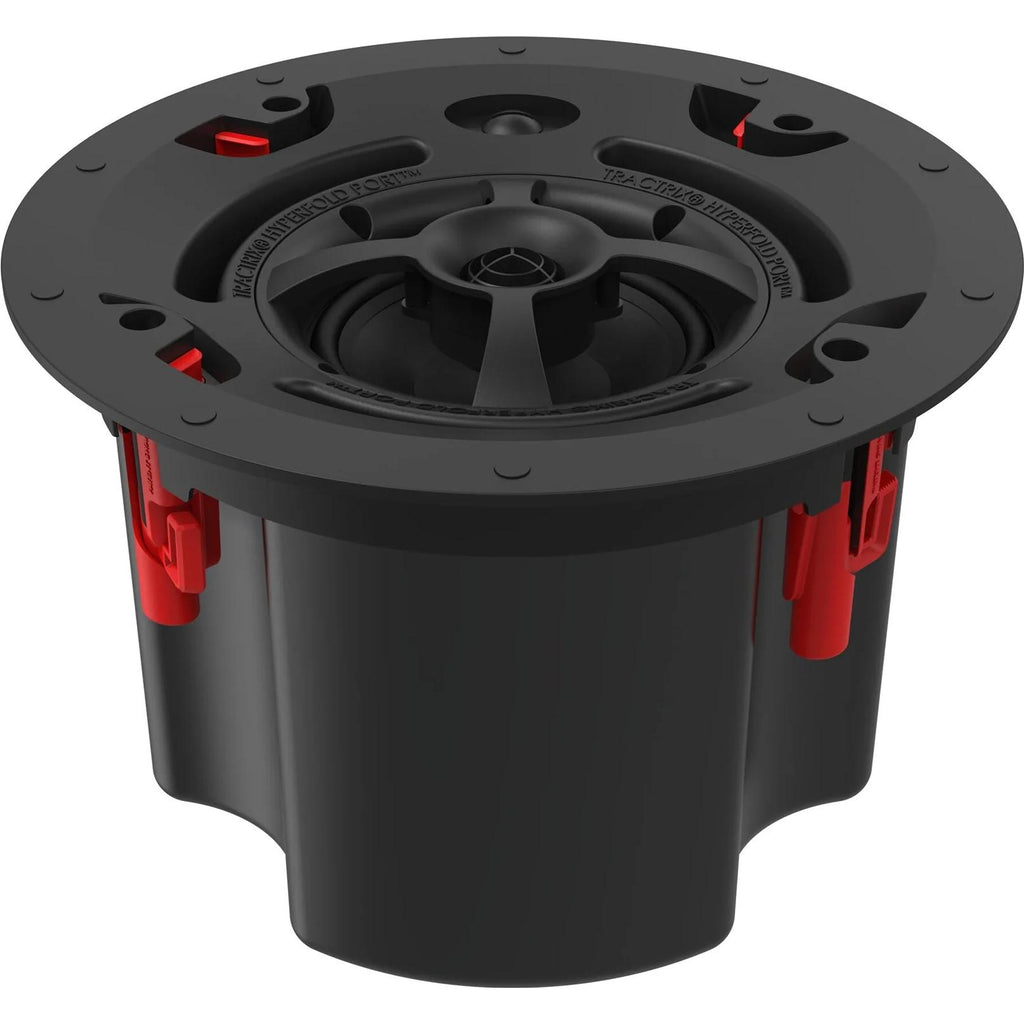

Speakers
High-Frequency Drivers
1" titanium compression driver, on a K-1500 TRACTRIX horn/tweeter bridge
Bass Drivers
4.5" woofer
Dimensions
Width
10.63 inch(es) / 26.99 cm
Depth
7.44 inch(es) / 18.89 cm
Weight
3.63 kg (each)
