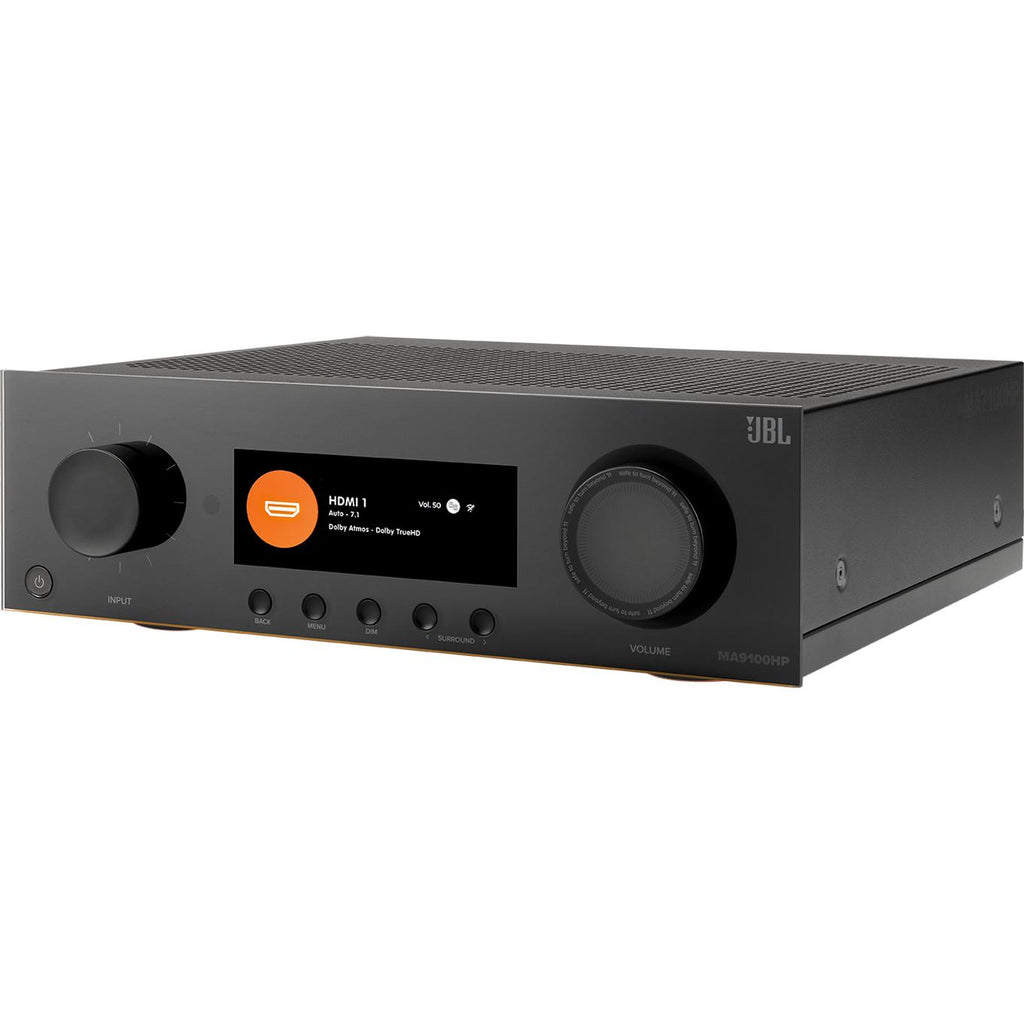

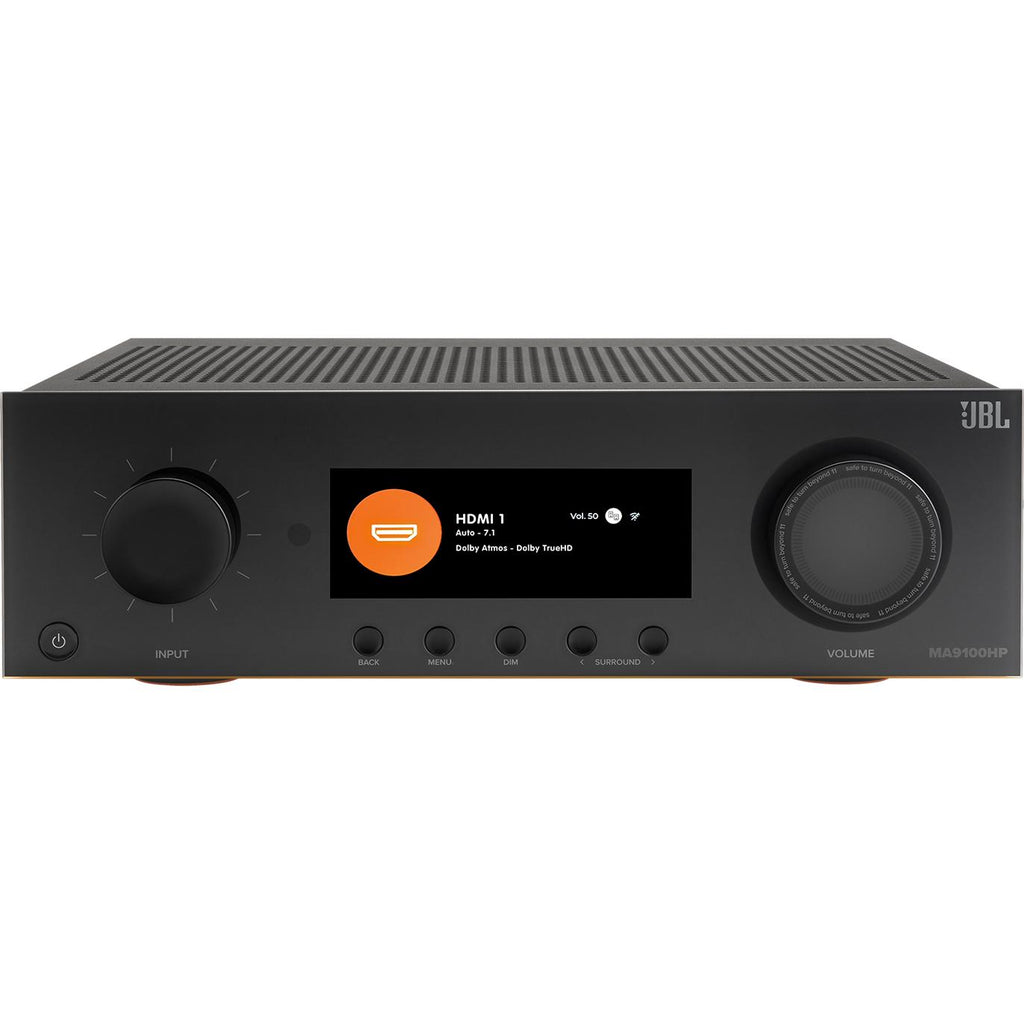

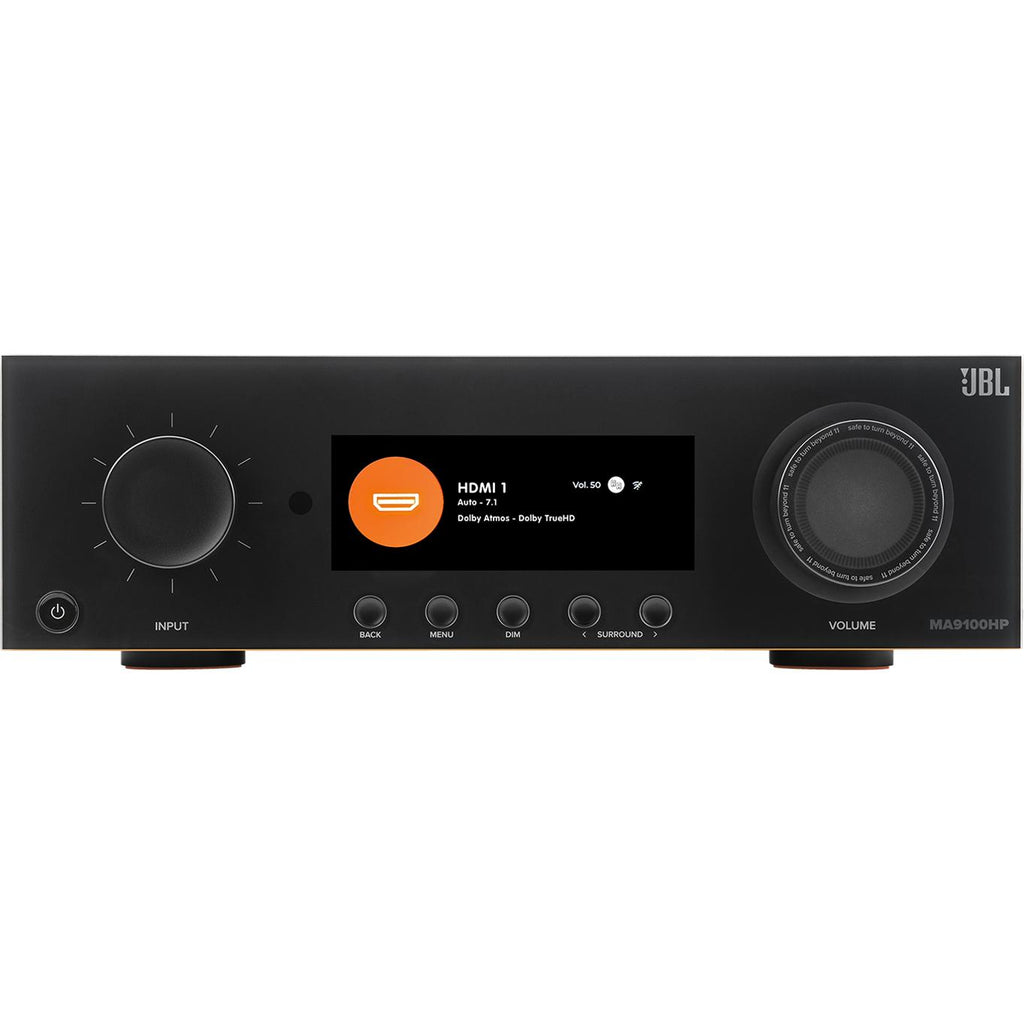

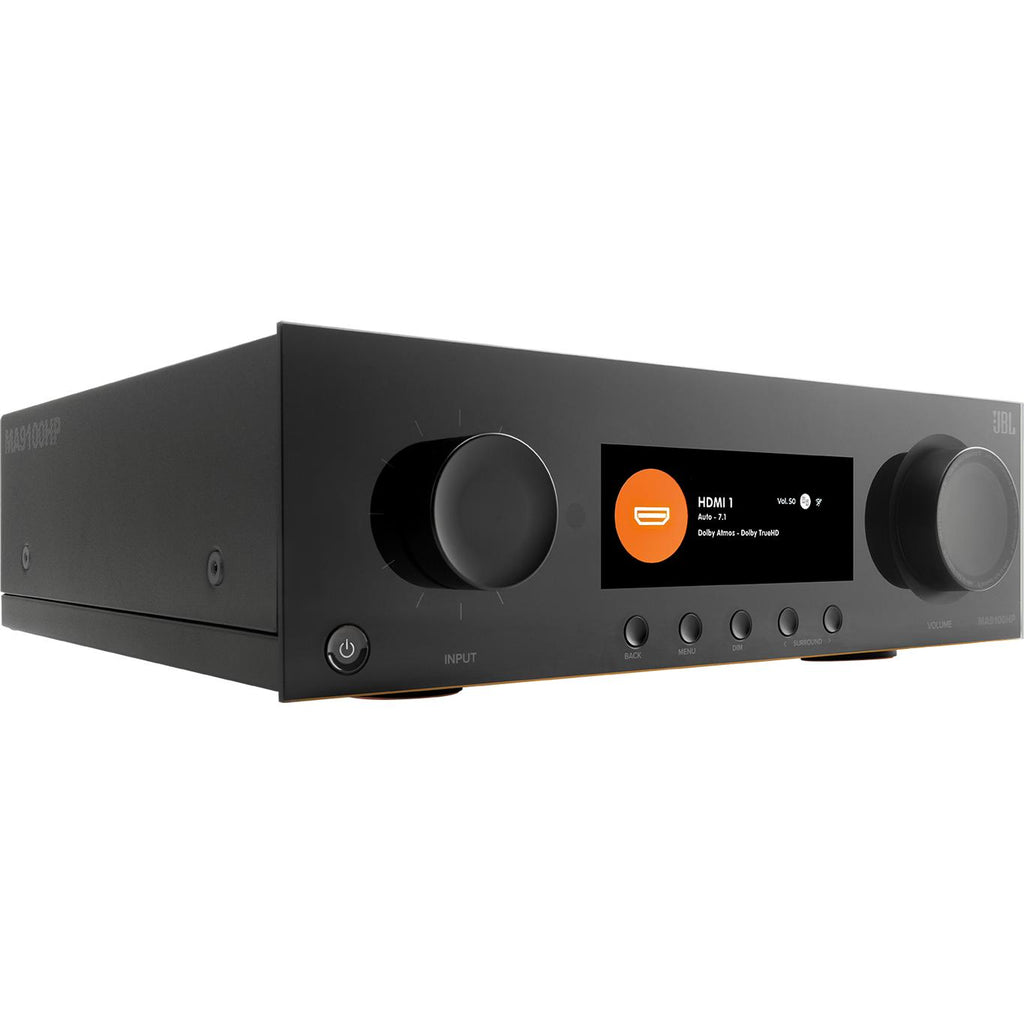

JBL 9.2-Channel AV Receiver - Black JBLMA9100HPBLKAM

JBLSKU: JBLMA9100HPBLKAM
The JBL MA9100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native... The JBL MA9100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 9-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA9100HP features nine channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Taking performance to the next level, the MA9100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allowing integrators and power-users to optimize the system to their personal room acoustics. Featuring a secondary HDMI video output and audio Zone, content can be made available in a secondary location. In addition to physical controls, the MA9100HP allows for IP control for third party control system integration. View more
Price:
$2,399.99
Features Specifications Documents
Features
Stunning audio and video performance (9.2-Channel)
High-performance 9.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
Stunning audio and video performance (9.2-Channel)
Intuitive setup with a minimalist modern design (6 HDMI, 2 Outputs)
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC
Intuitive setup with a minimalist modern design (6 HDMI, 2 Outputs)
MA9100HP - High-performance immersive surround sound
Dolby Atmos and DTS:X decoding, supports up to 9.1 or 7.1.2 or 5.1.4 channel configurations.
MA9100HP - High-performance immersive surround sound
Additional Features
Bluetooth and network streaming
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)
Powerful amplification
Five channels of low noise Class D amplification for real world power to all channels.
EZ Set EQ
EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
Specifications
General
Sound Channels
9.2
Power Consumption (Max)
900 W
Video Compatibility
8K
Dolby Atmos
Yes
Additional Surround Formats
MP3 / MPEG-4 AAC
Technologies
• HDR 10+, Dolby Vision
• Pure Analog
• EZ Set EQ
Additional Information
• HDMI 2.1 enhanced gaming features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
• Front channel bi-amp
• Digital signal processing: up to 24-bit/192kHz

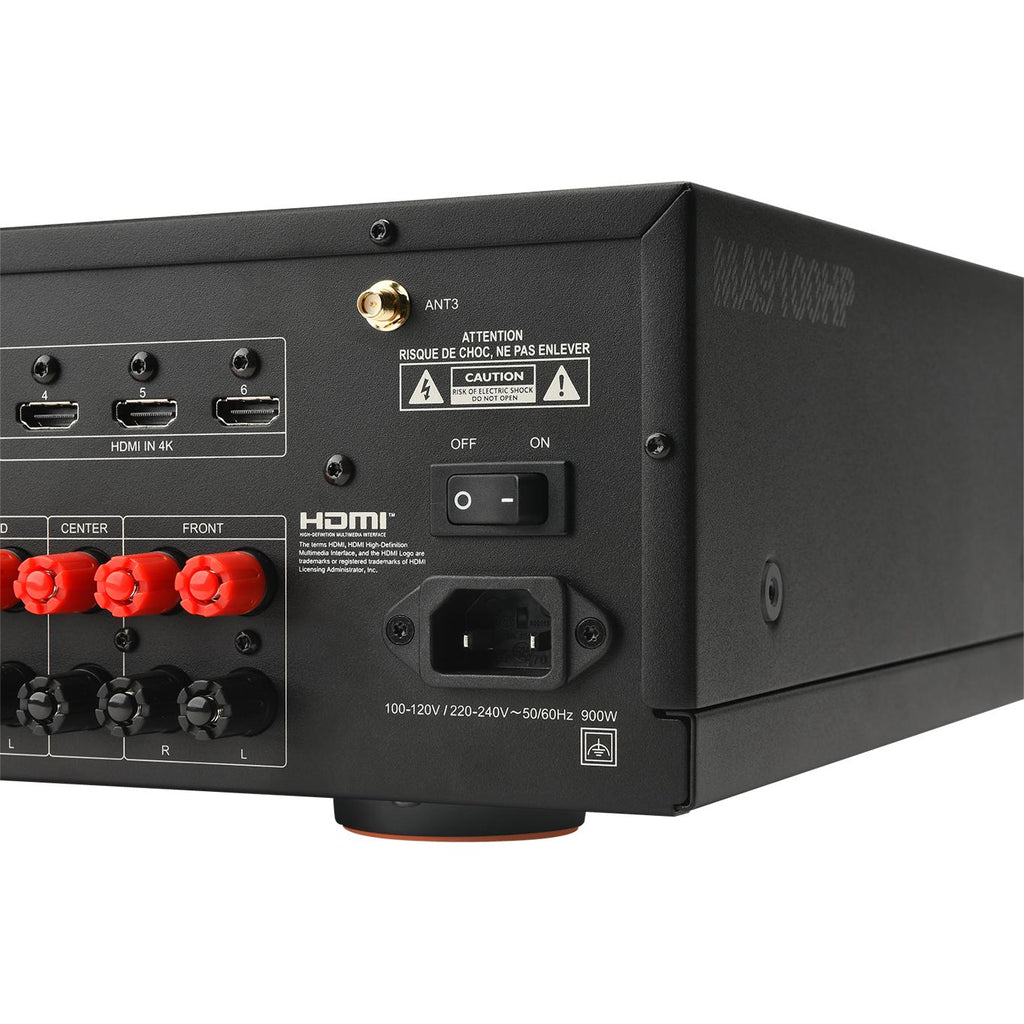

• Mains voltage: 110 – 240V, 50–60Hz
• Standby power consumption: <0.5W
• FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8 ohms): 140W
• Rated Power @ 8 ohms (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 140 W RMS
• Rated Power @ 4 ohms (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 240 W RMS
Network
Bluetooth
Built-In
Wi-Fi
Yes

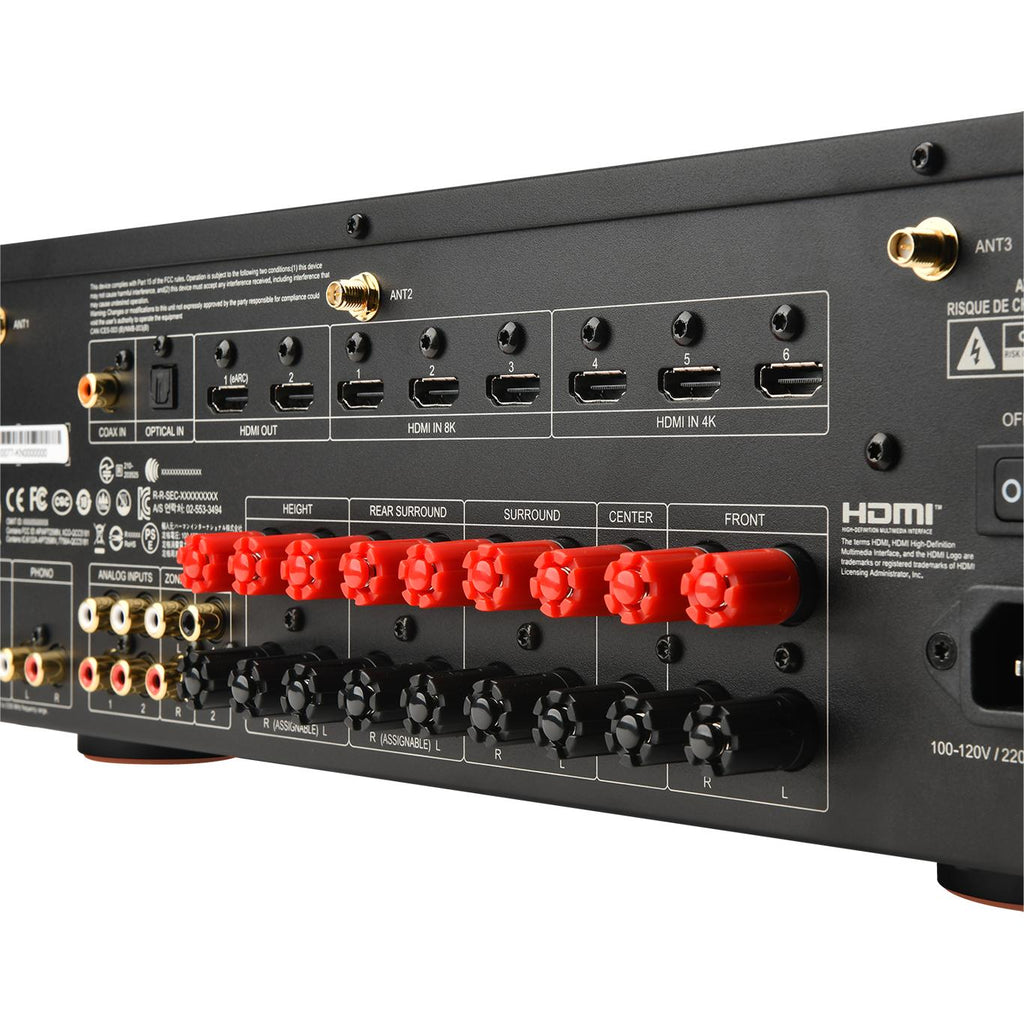

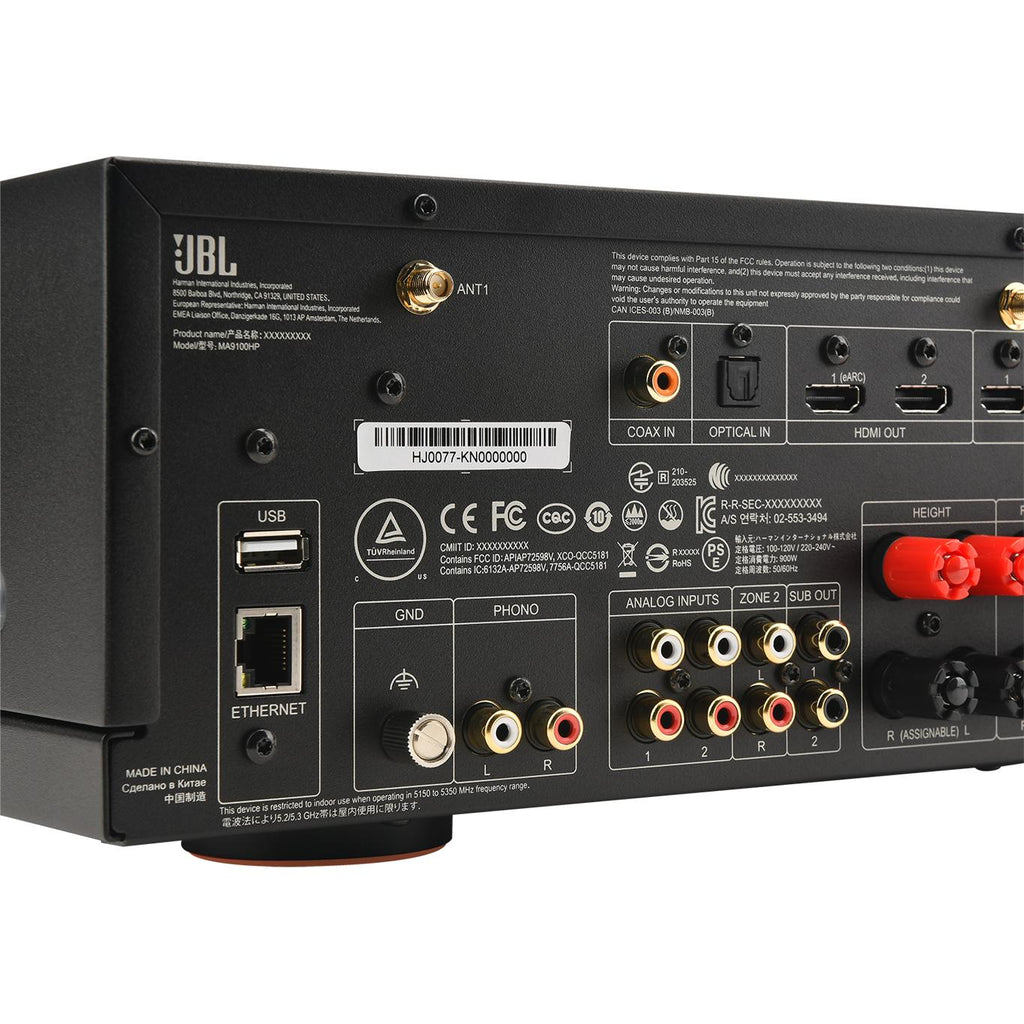

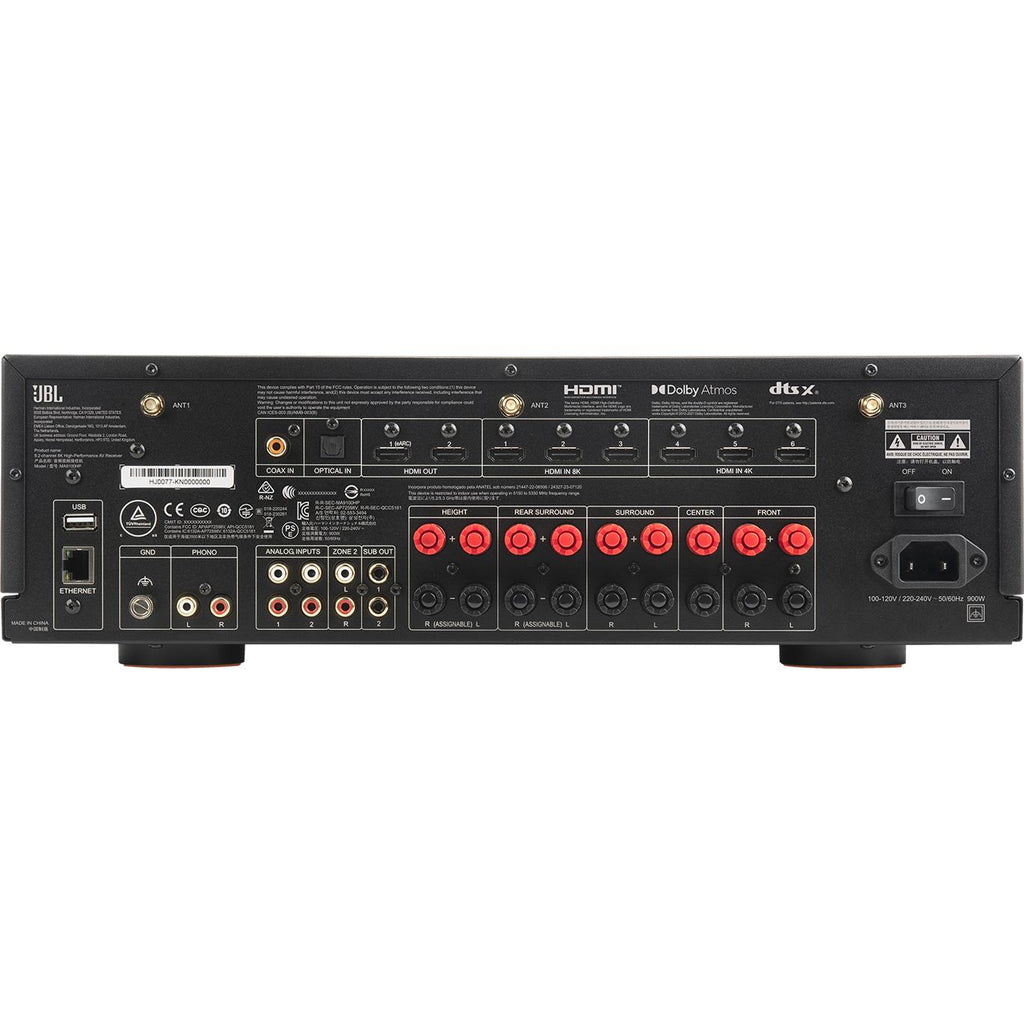

Inputs/Outputs
Information
• HDMI eARC
• HDMI Audio Return Channel
• 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3
• HDMI Input/Output: 6/ 2
• Wi-Fi (2.4/5GHz)
• Bluetooth receiver (v5.3, Low Energy, APTX HD, APTX Adaptive)
• Bluetooth transmit
• Digital Audio Input: 1 Coax, 1 Optical, 1 USB
• Stereo analog input: 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
• Pre-Out (single ended RCA): Stereo Zone 2, Subwoofer 1, Subwoofer 2
• Ethernet: RJ45 Gigabit, WiFi Onboard
Accessories
Included

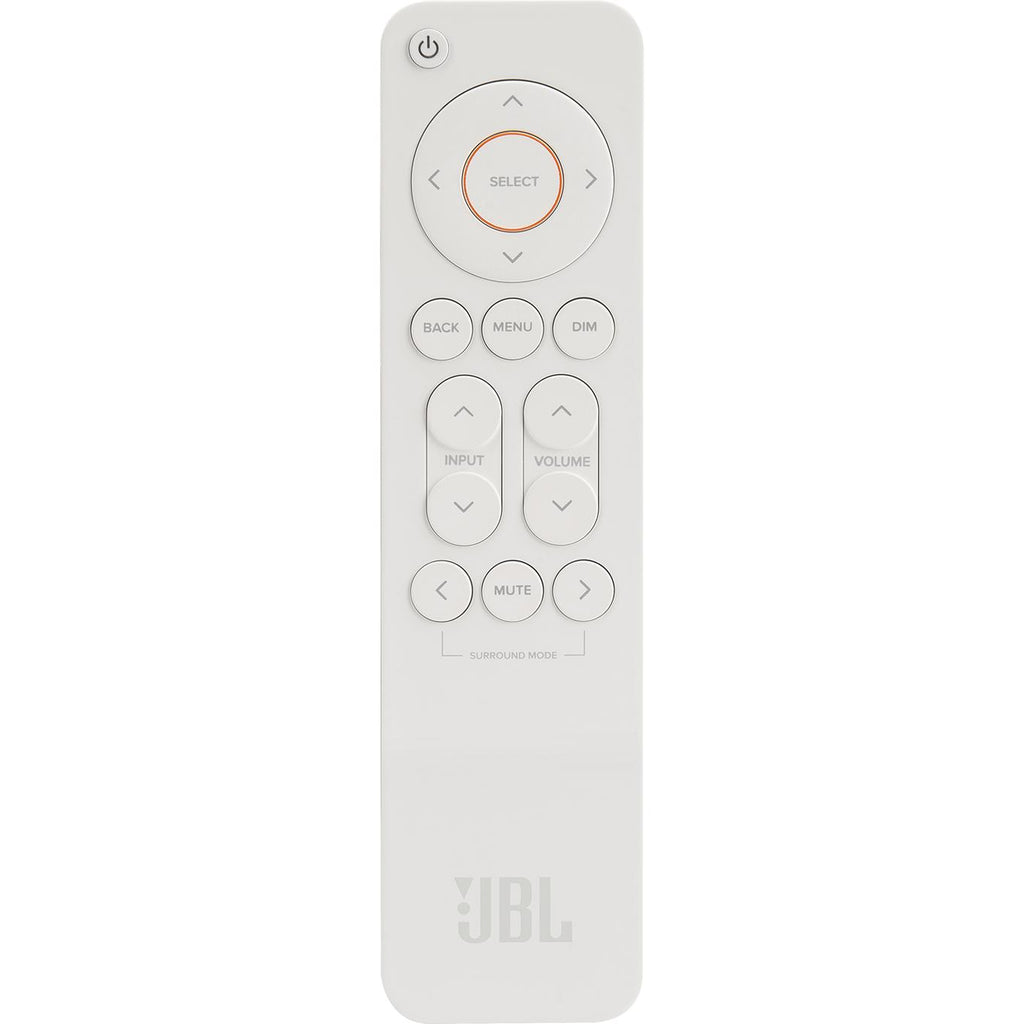

• 1x IR Remote
• 2x AAA batteries
• 1x Bluetooth antenna
• 2x Wi-Fi antenna
• 1x Power Cord
Dimensions
Width
17.01 inch(es) / 43.2 cm
Height
5.31 inch(es) / 13.5 cm
Depth
15.59 inch(es) / 39.6 cm
Weight
16.76 lb(s) / 7.6 kg
UPC
UPC#
50036400749
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
