Features
Stunning audio and video performance (7.2-Channel, 8K)

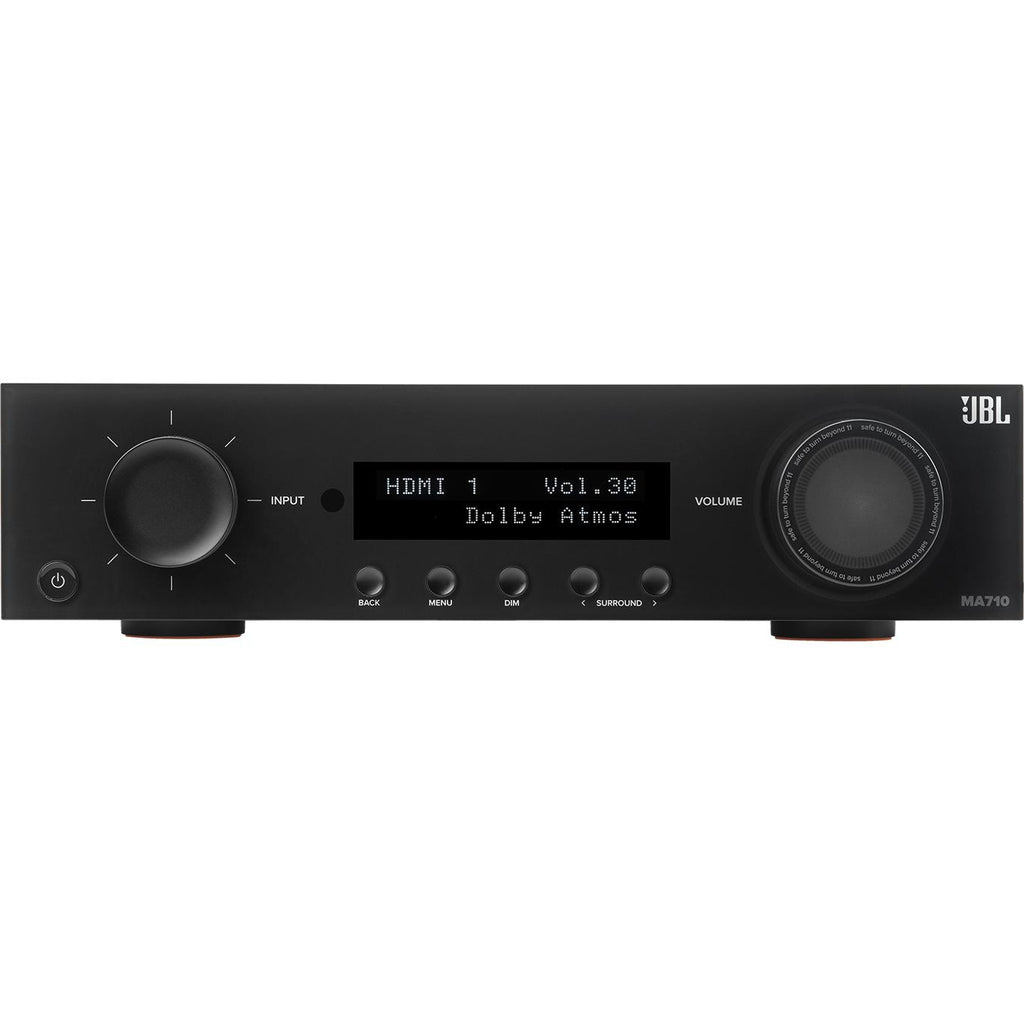

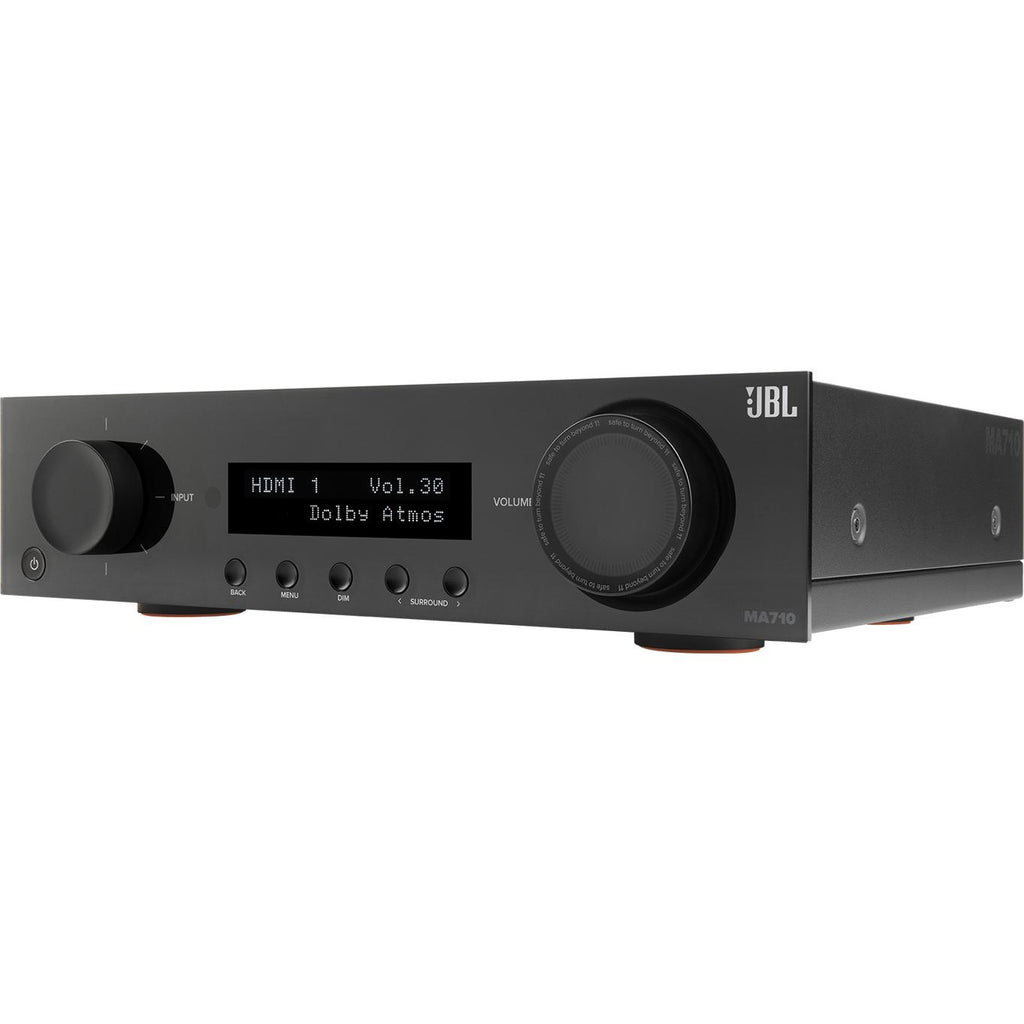

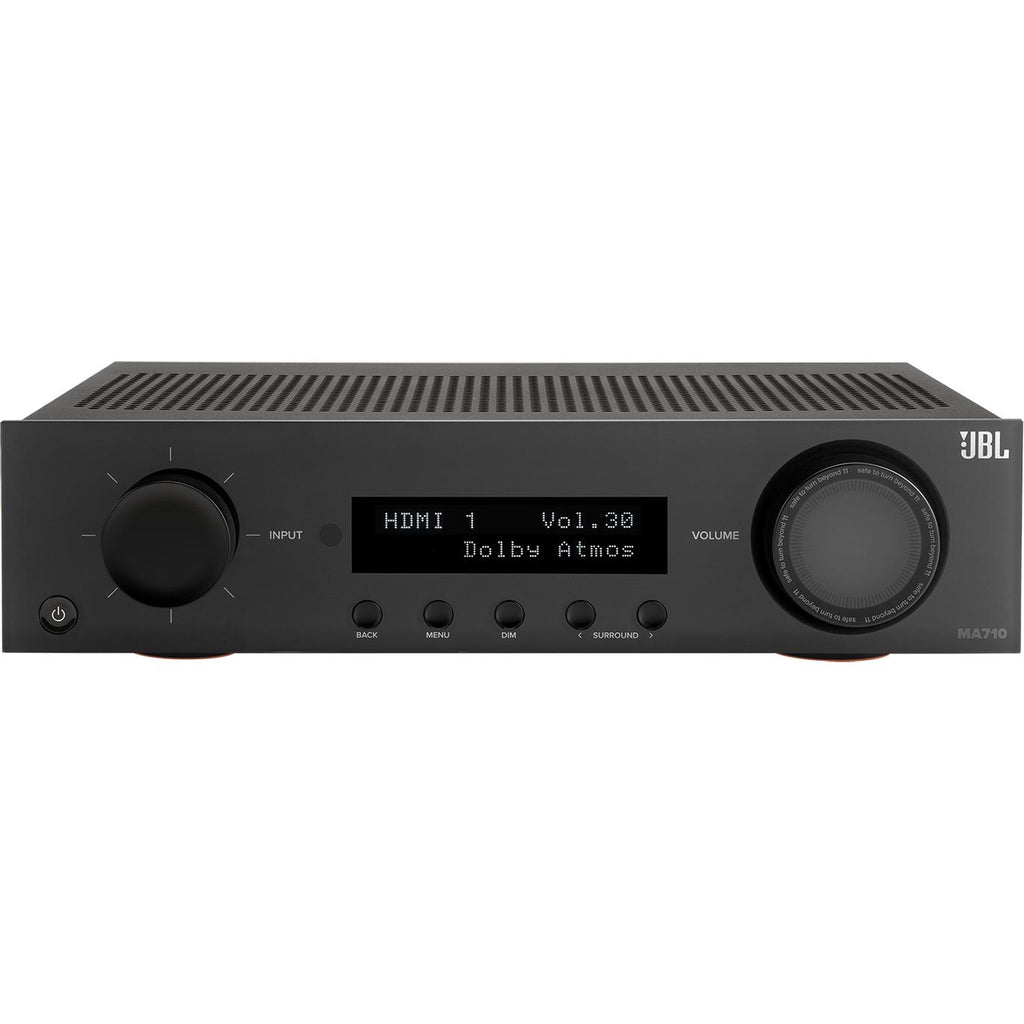

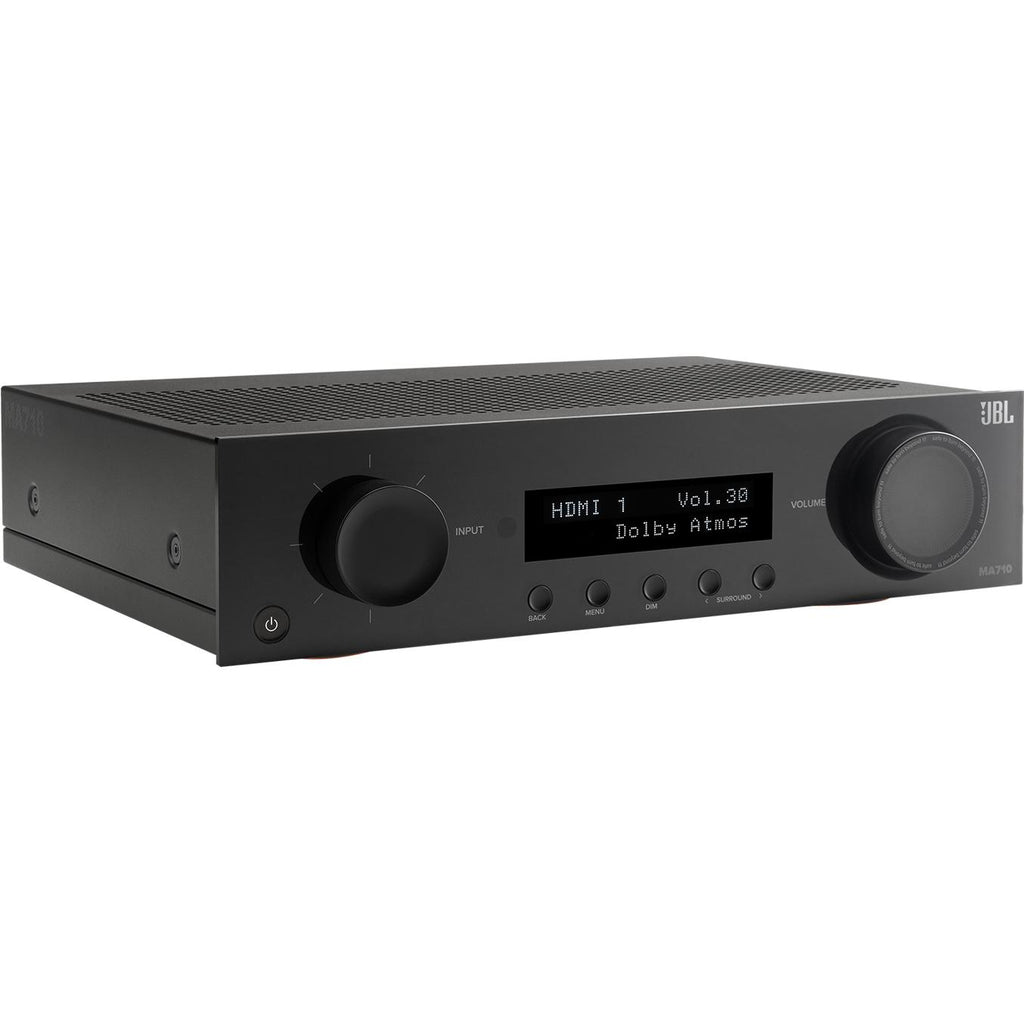

7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
Intuitive setup with a minimalist modern design (6 HDMI)
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 1 output, plus eARC
High-performance immersive surround sound.
Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations
Additional Features
Bluetooth and network streaming
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)
Powerful amplification
Five channels of low noise Class D amplification for real world power to all channels.
EZ Set EQ
EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
Specifications
General
Sound Channels
7.2
Power Consumption (Max)
500 W
Video Compatibility
8K
Dolby Atmos
Yes
Additional Surround Formats
MP3 / MPEG-4 AAC
Technologies
• HDR 10+, Dolby Vision
• Pure Analog
• EZ Set EQ
• Pure Analog
• EZ Set EQ
Additional Information
• HDMI 2.1 enhanced gaming features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
• Front channel bi-amp
• Digital signal processing: up to 24-bit/192kHz

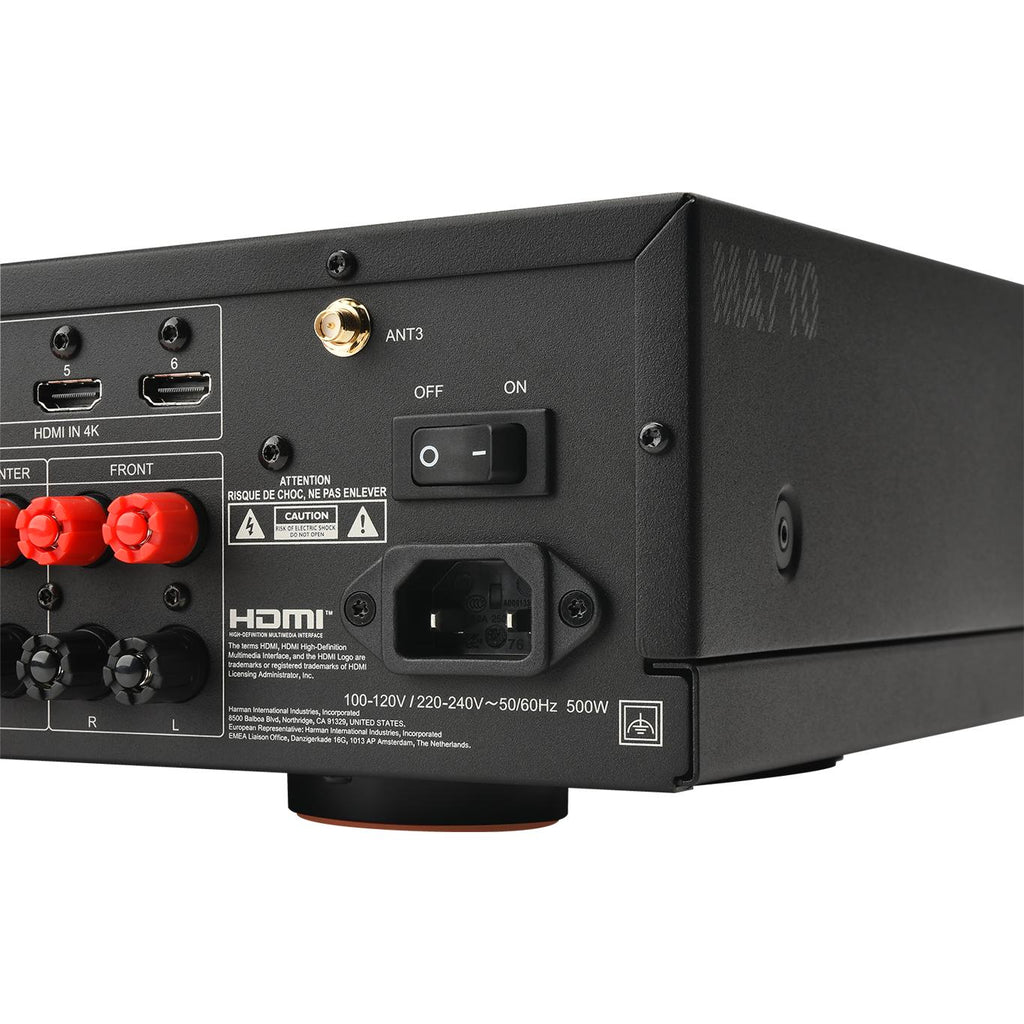

• Mains voltage: 110 – 240V, 50–60Hz
• Standby power consumption: <0.5W
• FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8 ohms): 110W
• Rated Power @ 8 ohms (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 110 W RMS
• Rated Power @ 4 ohms (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 160 W RMS
• Front channel bi-amp
• Digital signal processing: up to 24-bit/192kHz
• Mains voltage: 110 – 240V, 50–60Hz
• Standby power consumption: <0.5W
• FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8 ohms): 110W
• Rated Power @ 8 ohms (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 110 W RMS
• Rated Power @ 4 ohms (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 160 W RMS
Network
Bluetooth
Built-In
Wi-Fi
Yes

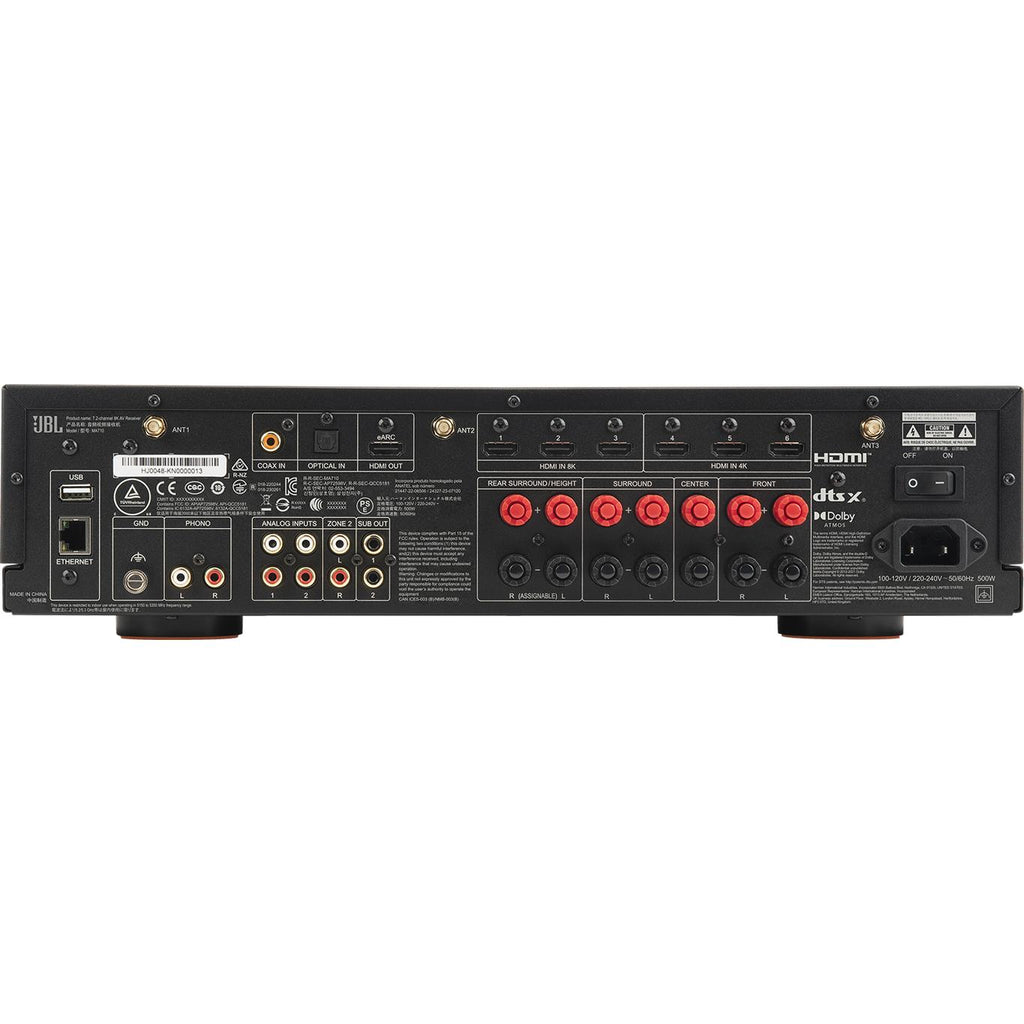

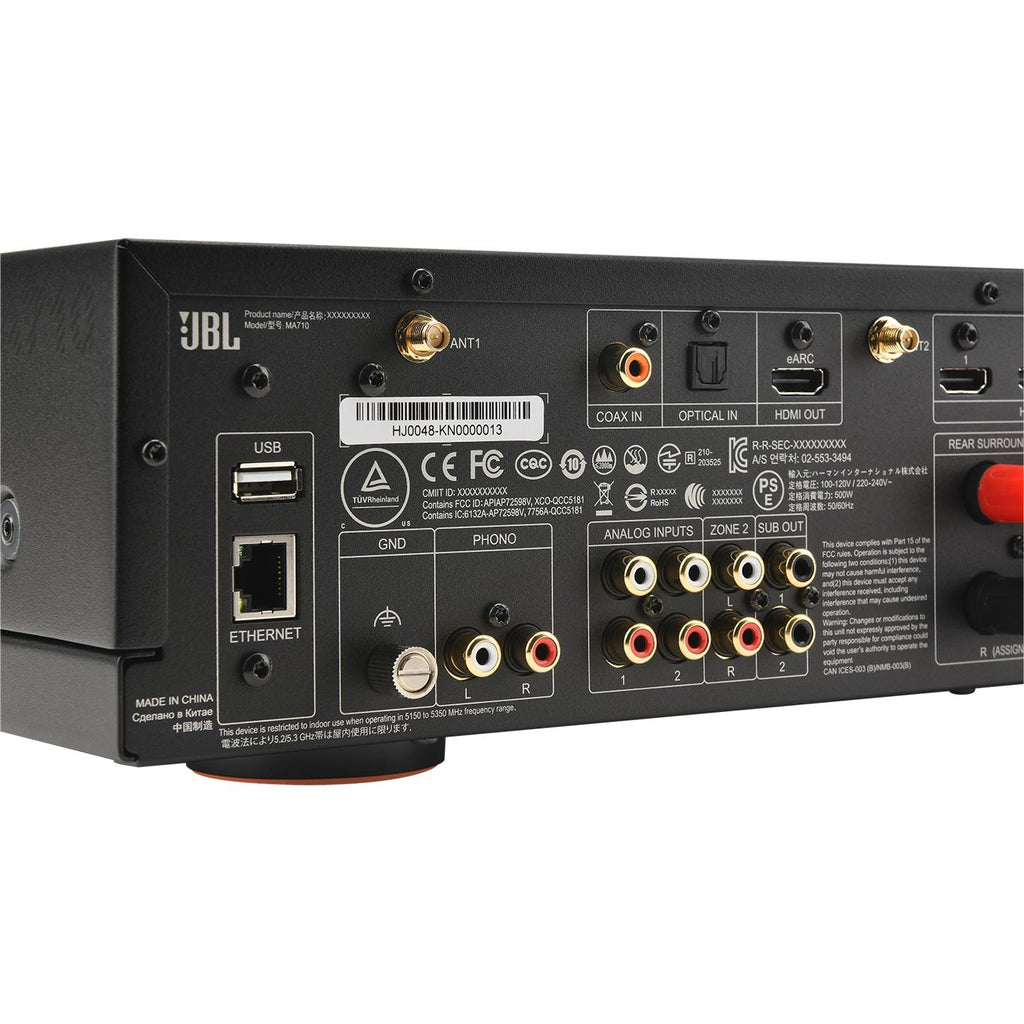

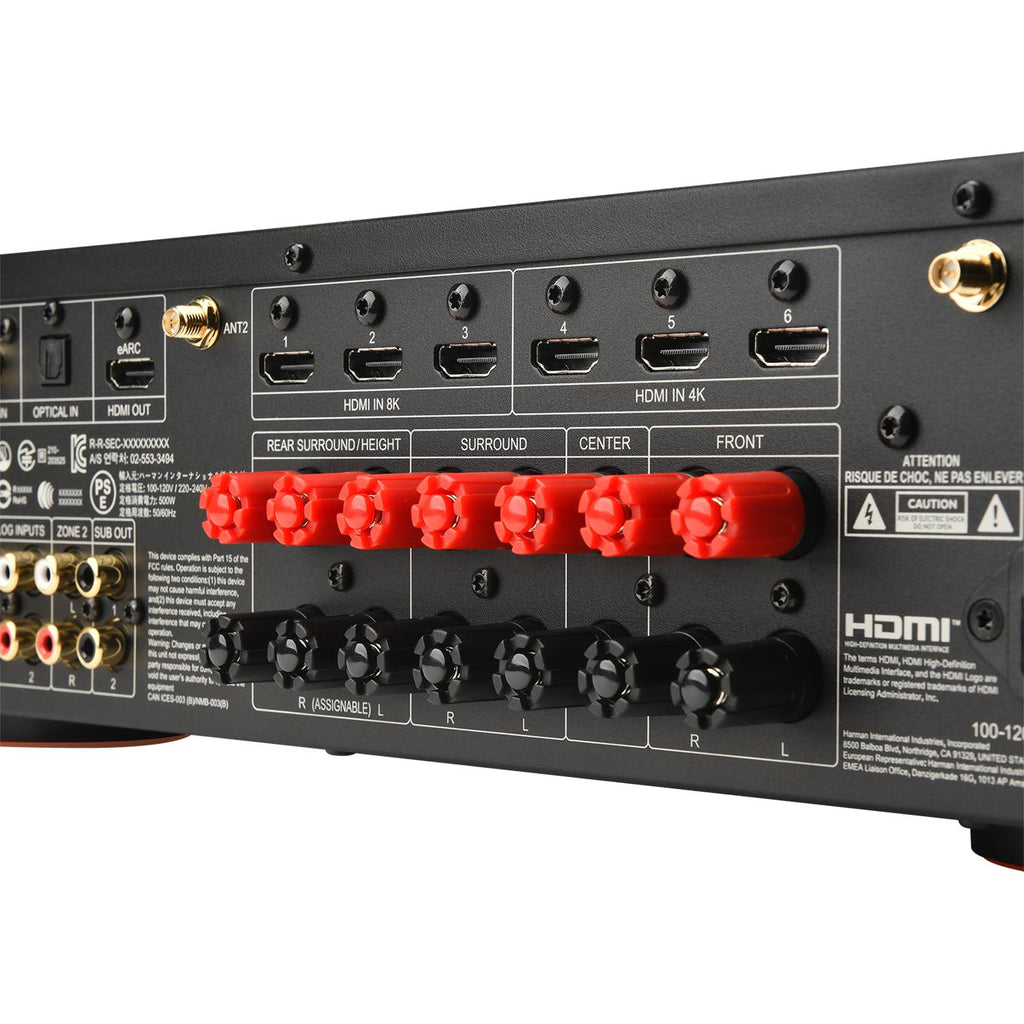

Inputs/Outputs
Information
• HDMI eARC
• HDMI Audio Return Channel
• 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3
• HDMI Input/Output: 6 / 1
• Wi-Fi (2.4 / 5GHz)
• Bluetooth receive (v5.3, Low Energy, APTX HD, APTX Adaptive)
• Digital Audio Input: 1 Coax, 1 Optical
• Stereo analog input: 2 single-ended RCA
• Pre-Out (single ended RCA): Stereo Zone 2, Subwoofer 1, Subwoofer 2
• HDMI Audio Return Channel
• 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3
• HDMI Input/Output: 6 / 1
• Wi-Fi (2.4 / 5GHz)
• Bluetooth receive (v5.3, Low Energy, APTX HD, APTX Adaptive)
• Digital Audio Input: 1 Coax, 1 Optical
• Stereo analog input: 2 single-ended RCA
• Pre-Out (single ended RCA): Stereo Zone 2, Subwoofer 1, Subwoofer 2
Accessories
Included

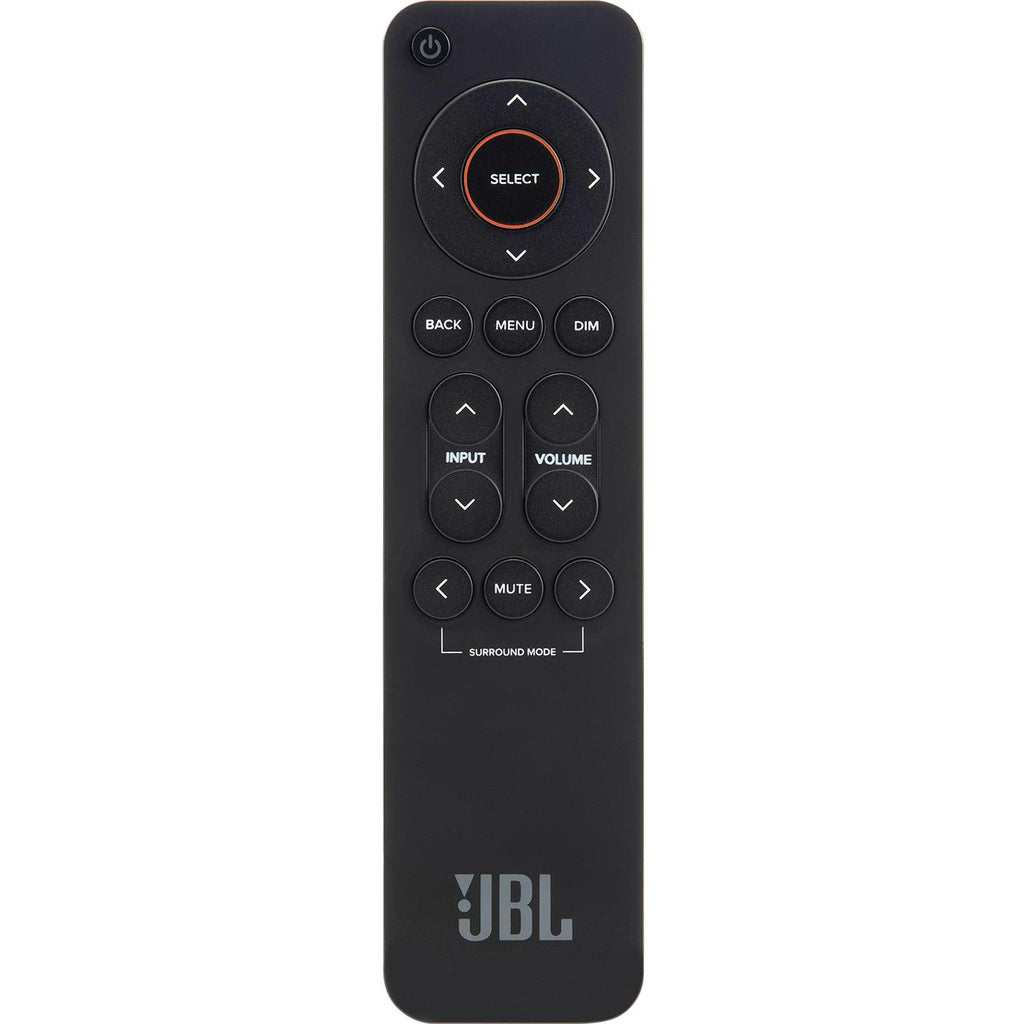

• 1x IR Remote
• 2x AAA batteries
• 1x Bluetooth antenna
• 2x Wi-Fi antenna
• 1x Power Cord
• 2x AAA batteries
• 1x Bluetooth antenna
• 2x Wi-Fi antenna
• 1x Power Cord
Dimensions
Width
17.01 inch(es) / 43.2 cm
Height
4.3 inch(es) / 10.92 cm
Depth
13.69 inch(es) / 34.76 cm
Weight
13.89 lb(s) / 6.3 kg
UPC
UPC#
50036400466
