Features

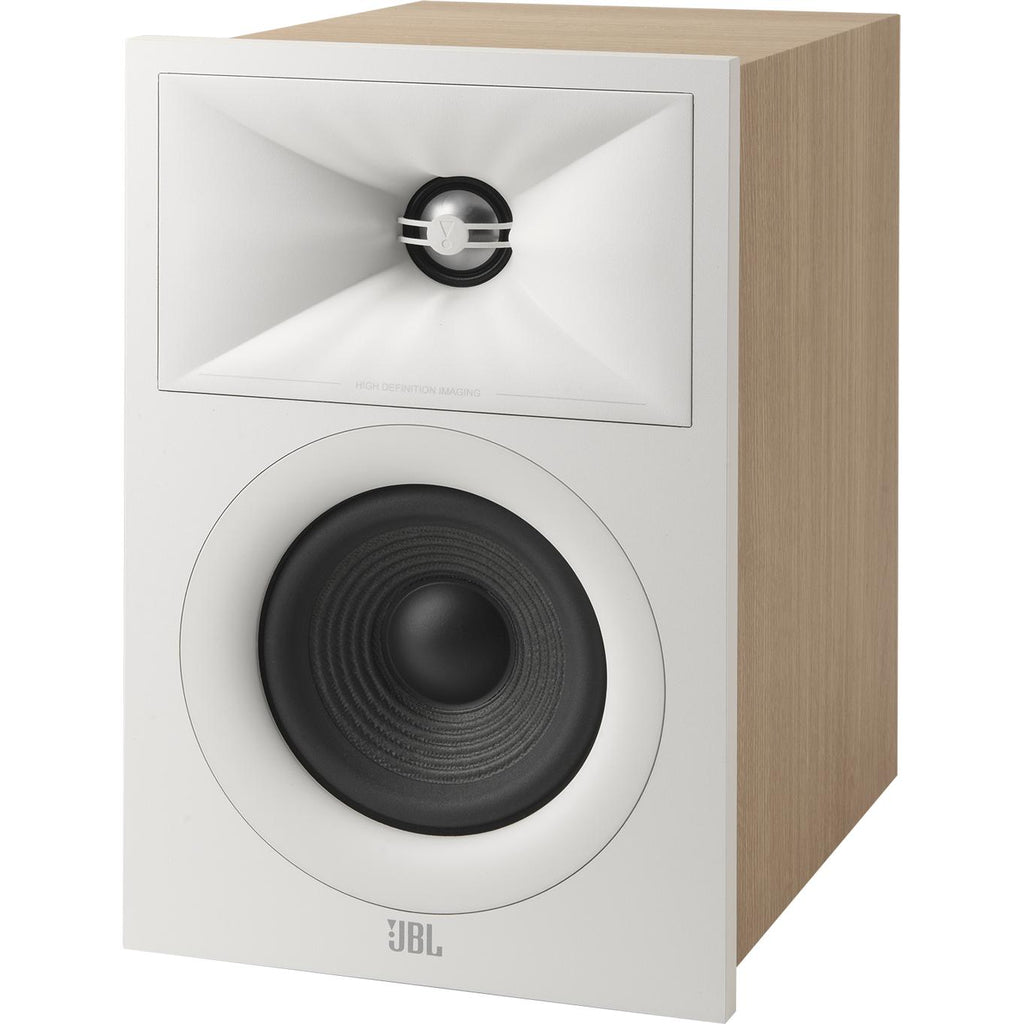

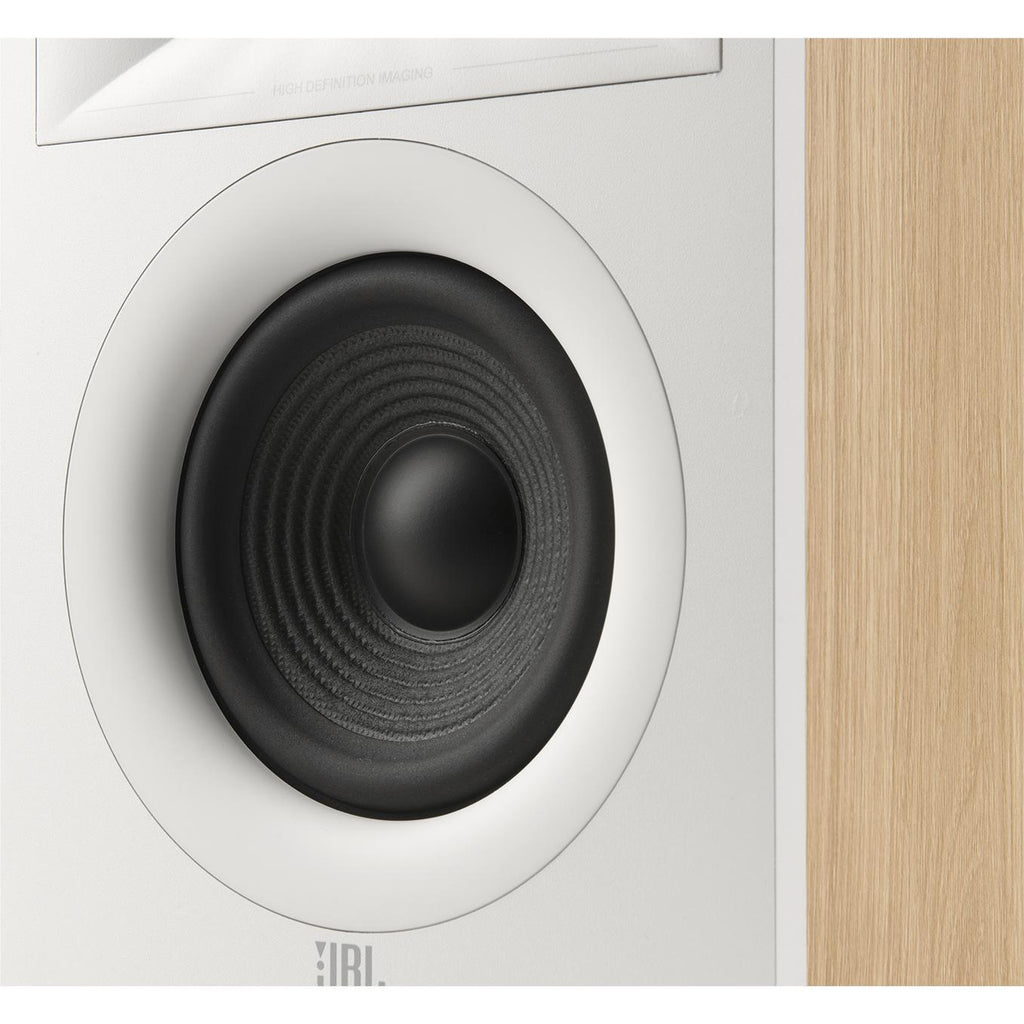

Stage 2 - 4.5-inch (114mm) Polycellulose Ribbed Cone Woofer
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.

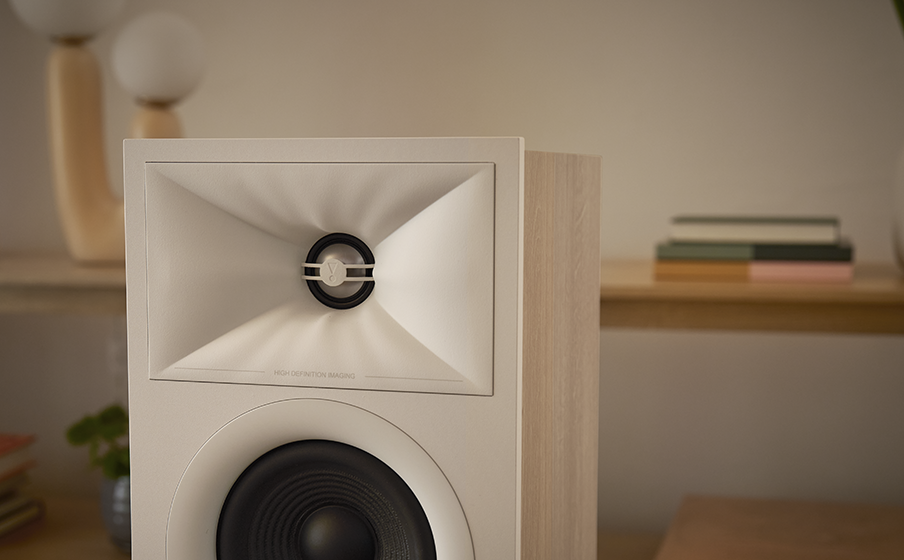

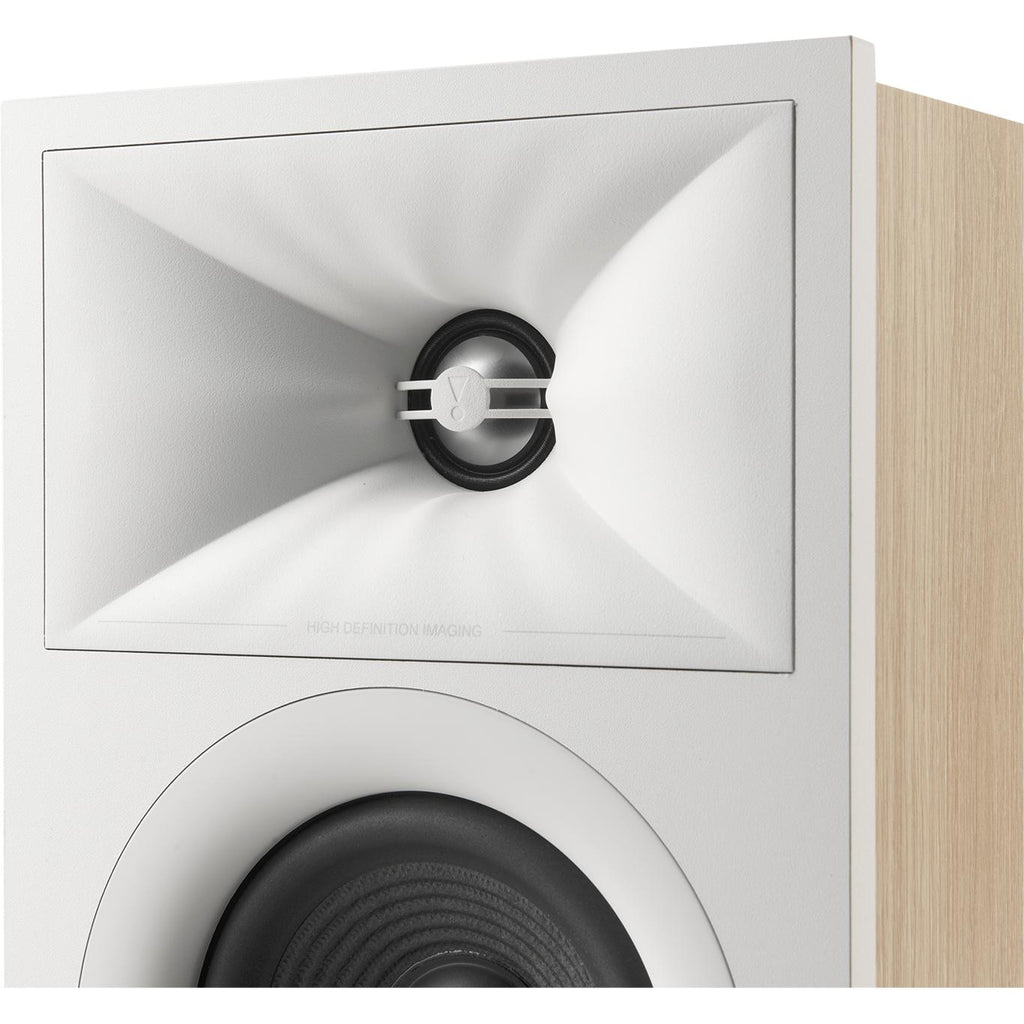

Stage 2 - 1-inch (25mm) Anodized Aluminum Tweeter in a Next Generation HDI™ Waveguide
Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis. The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics.

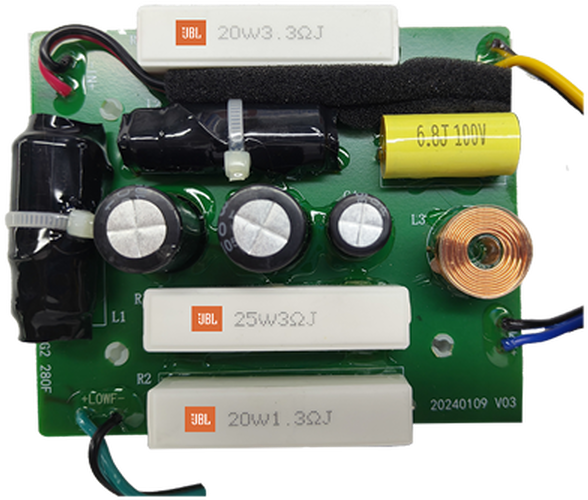

Stage 2 - Precision 2-Way Crossover
Premium components are used to construct the crossovers fitted to the Stage 2 line. The High frequency section features air core inductors and mylar capacitors that reduce distortion and improve sonic performance. The low frequency section includes laminate core inductors and electrolytic capacitors. These premium materials can handle more power and transmit energy faster elevating system performance.
Additional Features

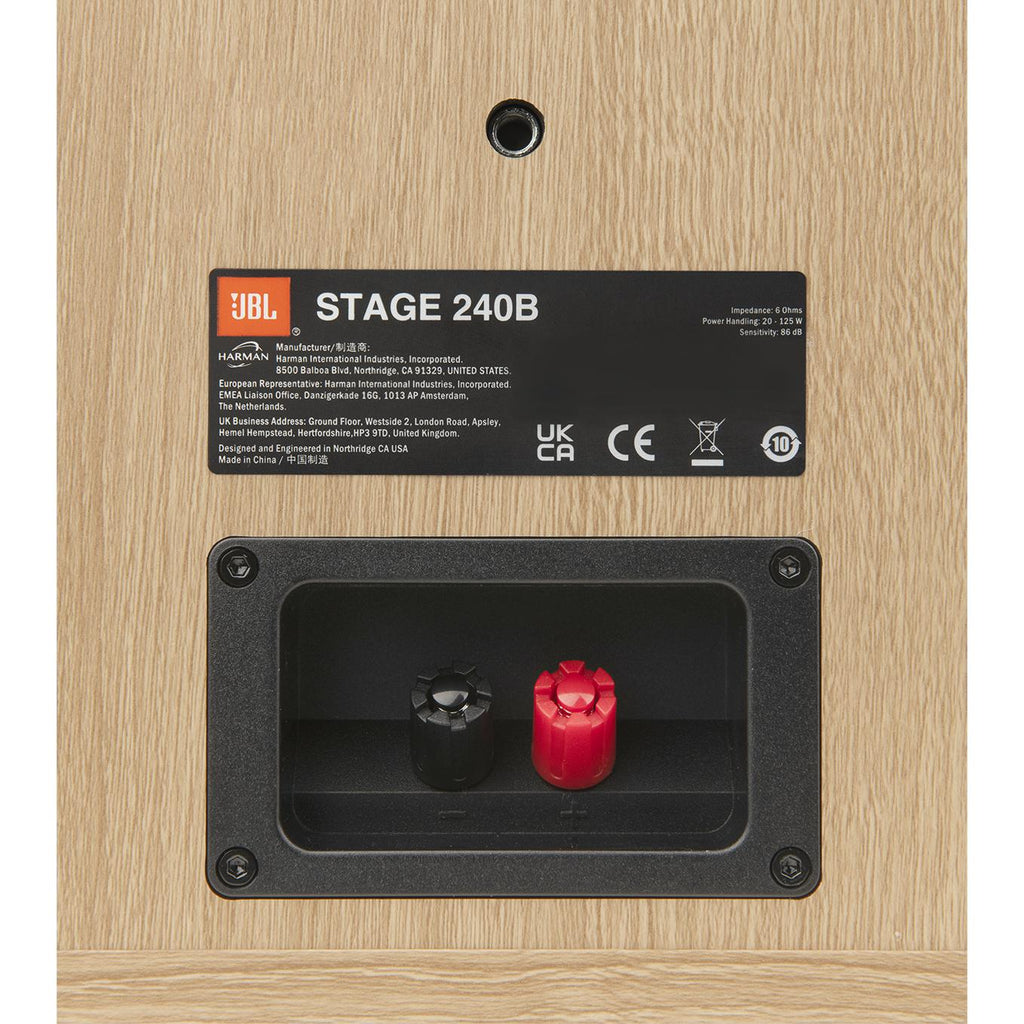

5-Way Binding Posts
Sturdy 5-way binding posts provide the listener with their choice of high-quality connection. They also match the binding posts on the JBL MA AVRs, carrying the cohesive look throughout.

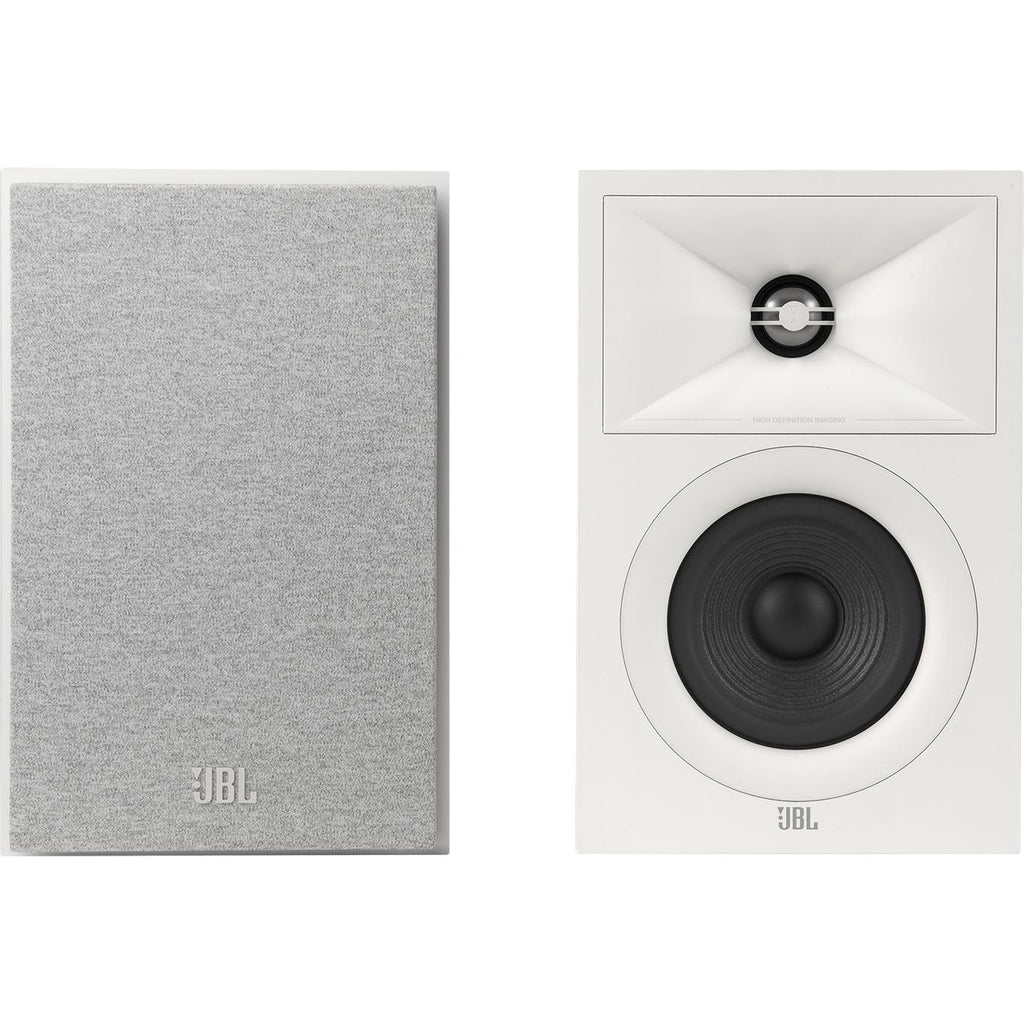

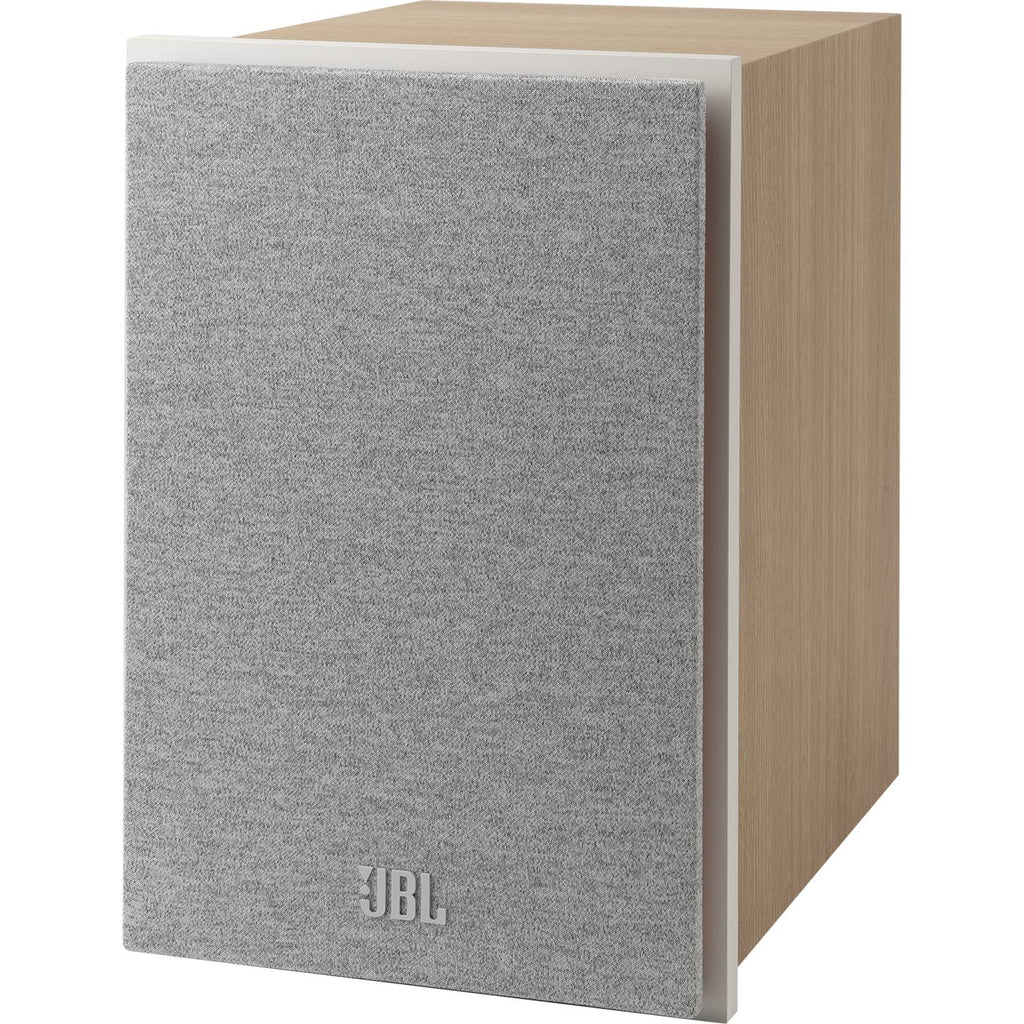

Magnetically Attached Grilles
Stage 2 has premium details throughout the line including magnetically attached grilles, unique trim rings and the floating front baffle design - upscale features not typically found on loudspeakers in this price range.
Anti-Slip Pads
Includes anti slip pads to hold the speaker securely in place to minimize vibrations.

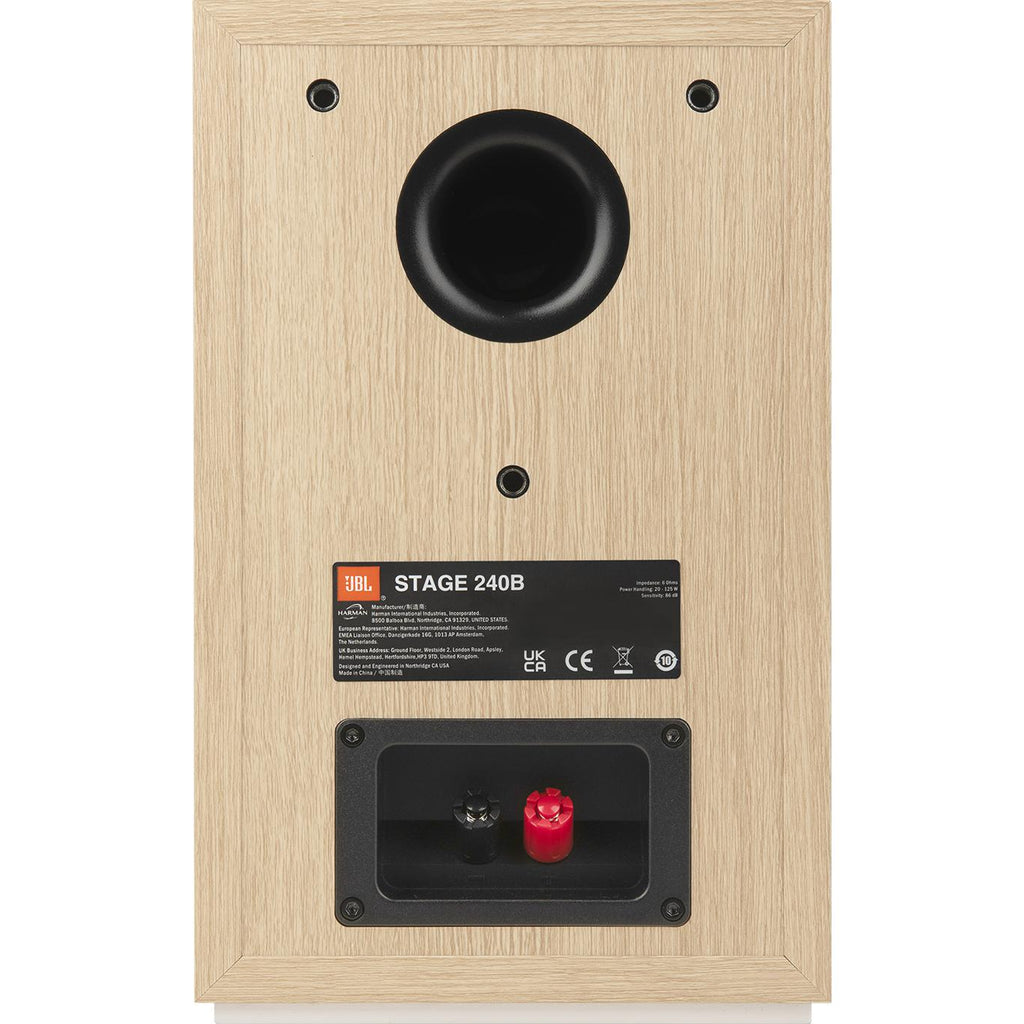

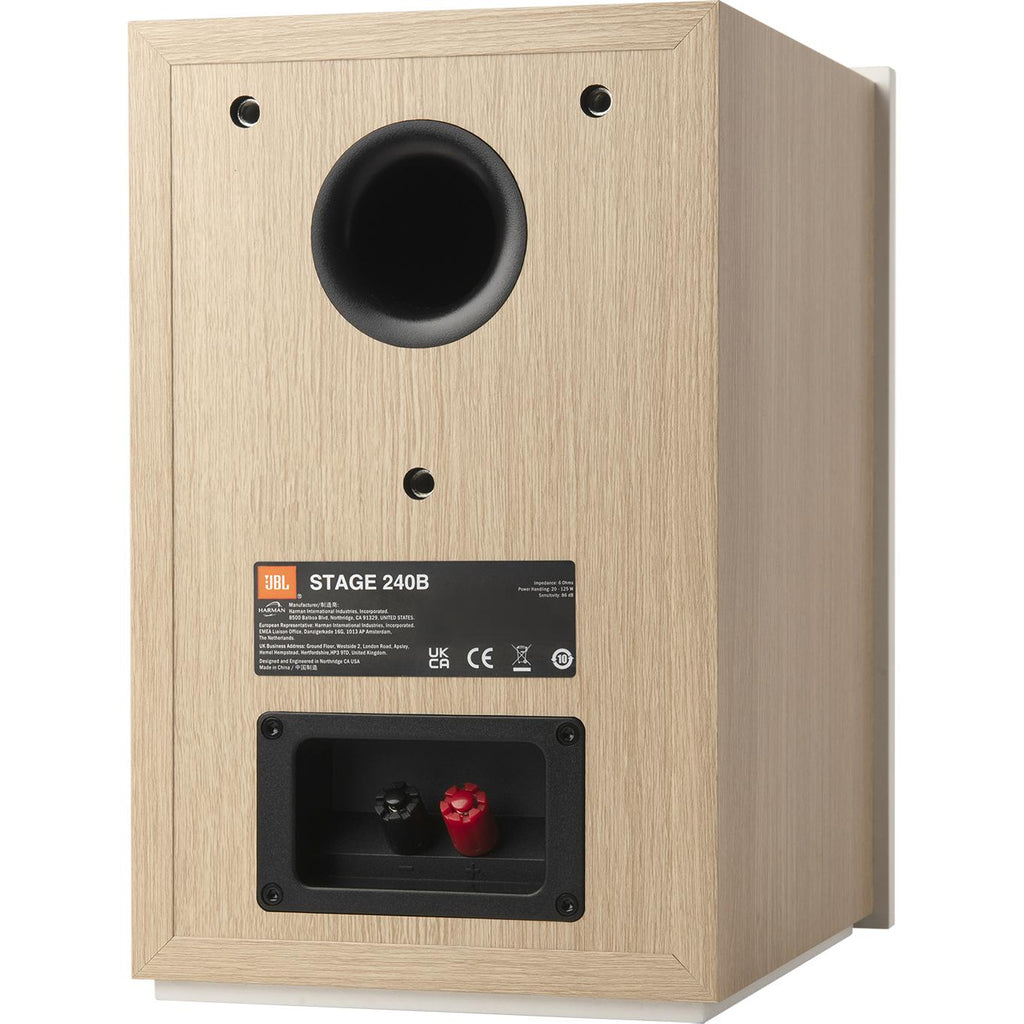

Rear-Firing Tuned Port
A flared port is featured on this model. This new flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or coloration of output.
Wall and 1/4-20 Insert Mounting Options
Includes and a bracket for easy attachment to a wall and an industry standard 1/4-20 threaded insert for use with aftermarket mount systems.
Specifications
General
Series
Stage 2
Speaker Type
Indoor
Color
Walnut
Manufacturer Color
Latte
Frequency Response
53Hz-25kHz
Sensitivity
85dB
Amplifier Recommended Range
20-125W
Impedance
6 ohms
Features
Technologies
Next Generation HDI™
Additional Information
Enclosure Tuning: Bass Reflex via Rear-Firing Tuned Port
Speakers
High-Frequency Drivers
1-inch (25mm) Anodized Aluminum
Bass Drivers
4.5-inch (114mm) Polycellulose Ribbed Cone
Crossover Information
1.4Khz
Dimensions
Width
6.9 inch(es) / 17.53 cm
Height
10.7 inch(es) / 27.18 cm
Depth
8.5 inch(es) / 21.59 cm
Weight
4.58 kg (each)
Shipping Dimensions
Weight
22.91 lb(s) / 10.39 kg
UPC
UPC#
50036401869
